Technical Information for Quarter Turn Lock Keys

Overview

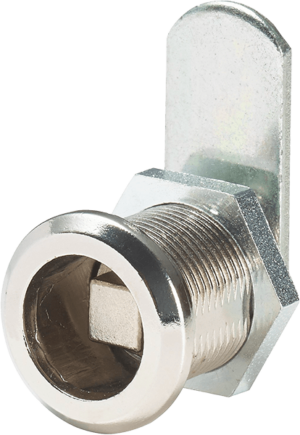

Quarter turn lock keys are used on our range of tool operated water resistant locks and our tool operated locks.

This is the basic key shape. Details of all the keys available can be found below.

3mm Double Barb Key

Product Code:	F8074
Key Diameter:	13.3mm
Key Length:	70mm
Key Width:	56mm
Key Shape/Size:	3mm Double Barb
Material:	Zamak
Compatible with:	0014, F457, F445, F470

3mm Double Barb Key

Product Code:	9304672
Key Diameter:	–
Key Length:	90mm
Key Width:	32mm
Key Shape/Size:	3mm Double Barb
Material:	Zamak
Compatible with:	0014

5mm Double Barb Key

Product Code:	F8075
Key Diameter:	13.3mm
Key Length:	70mm
Key Width:	56mm
Key Shape/Size:	5mm Double Barb
Material:	Zamak
Compatible with:	0011, F464, F183, F471

5mm Double Barb Key

Product Code:	9304670
Key Diameter:	–
Key Length:	90mm
Key Width:	32mm
Key Shape/Size:	5mm Double Barb
Material:	Zamak
Compatible with:	0011

6.5mm Triangle Key

Product Code:	F8412-T6.5
Key Diameter:	13.3mm
Key Length:	70mm
Key Width:	56mm
Key Shape/Size:	6.5mm Triangle
Material:	Zamak
Compatible with:	F354, F465 , F208, F472

6.5mm Triangle Key

Product Code:	F8197
Key Diameter:	11mm
Key Length:	70mm
Key Width:	56mm
Key Shape/Size:	6.5mm Triangle
Material:	Zamak
Compatible with:	F354, F465 , F208, F472

6mm Square Key

Product Code:	F8412-C6M
Key Diameter:	13.3mm
Key Length:	70mm
Key Width:	56mm
Key Shape/Size:	6mm Square
Material:	Zamak
Compatible with:	B236, F463, F258, F187, F475

6mm Square Key

Product Code:	8005405
Key Diameter:	12mm
Key Length:	90mm
Key Width:	32mm
Key Shape/Size:	6mm Square
Material:	Zamak
Compatible with:	B236, F463, F258, F187, F475

6mm Square Key (Female)

Product Code:	F8080
Key Diameter:	13.3mm
Key Length:	70mm
Key Width:	56mm
Key Shape/Size:	6mm Square (Female)
Material:	Zamak
Compatible with:	F476

7mm Square Key

Product Code:	F8412-C7M
Key Diameter:	13.3mm
Key Length:	70mm
Key Width:	56mm
Key Shape/Size:	6mm Square
Material:	Zamak
Compatible with:	B971, 0012, F504, F184

7mm Square Key

Product Code:	9304671
Key Diameter:	–
Key Length:	90mm
Key Width:	32mm
Key Shape/Size:	7mm Square
Material:	Zamak
Compatible with:	0012

7mm Triangle Key

Product Code:	F8412-T7M
Key Diameter:	13.3mm
Key Length:	70mm
Key Width:	56mm
Key Shape/Size:	7mm Square
Material:	Zamak
Compatible with:	C675, B884, F7B, F254

7mm Triangle Key

Product Code:	8005403
Key Diameter:	12mm
Key Length:	90mm
Key Width:	32mm
Key Shape/Size:	7mm Square
Material:	Zamak
Compatible with:	C675, B884, F7B, F254

8mm Square Key

Product Code:	F8412-C8M
Key Diameter:	13.3mm
Key Length:	70mm
Key Width:	56mm
Key Shape/Size:	8mm Square
Material:	Zamak
Compatible with:	F274, F186, F478

8mm Triangle Key

Product Code:	F8412-T8M
Key Diameter:	13.3mm
Key Length:	70mm
Key Width:	56mm
Key Shape/Size:	8mm Triangle
Material:	Zamak
Compatible with:	5524-0100, B576, F428-H, F428-AH, B929, 0013, F458, F48, F174, F262, F185, F473 ,C987 , F600, F550

8mm Triangle Key

Product Code:	8005401
Key Diameter:	12mm
Key Length:	90mm
Key Width:	32mm
Key Shape/Size:	8mm Triangle
Material:	Zamak
Compatible with:	4282-1400, 4283-1400, 4284, 5500-0501, 5502-0100, 5503-0100

8mm Triangle Key

Product Code:	9304673
Key Diameter:	90mm
Key Length:	32mm
Key Width:	56mm
Key Shape/Size:	8mm Triangle
Material:	Zamak
Compatible with:	4282-1400, 4283-1400, 4284, 5500-0501, 5502-0100, 5503-0100

9mm Triangle Key

Product Code:	F8412-T9M
Key Diameter:	13.3mm
Key Length:	70mm
Key Width:	56mm
Key Shape/Size:	9mm Triangle
Material:	Zamak
Compatible with:	B900, F146, F209

Product Code:	80054-0100
Compatible with:	2401, 4282, 4283, 4284, 4285, 5500

Product Code:	87343-0401DA
Compatible with:	5505
