13mm Tool Operated Water Resistant Camlock F457

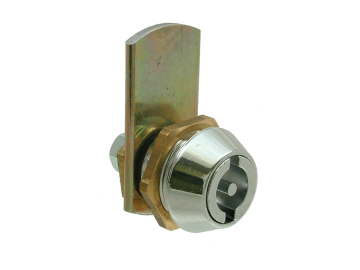

A 13mm Tool Operated Water Resistant Camlock F457 in Bright Chrome.
Lock Description
This lock is IP65 rated making it ideal for use on applications such as Enclosures and Postal. An O ring prevents water from penetrating into the application through the lock mechanism. It is essential for the customer to fit a sealing ring between the head of the lock and the door of the of the application.
Have a question?
Lock Options
| Product Code | Key Series | Body Length | Head Width | Head Depth | Cam Fixing | Finish | Head Shape | Housing Fixing | IP65 | Key Number | Movement | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F354 | 10.8 | 26 | 6 | Riveted | Bright Chrome | Conical | Nut Fixing | Yes | 1 | |||
| F457 | 13 | 26 | 8.5 | Screw | Bright Chrome | Conical | Nut Fixing | Yes | F8074 | 1 | ||
| F458 | 13 | 26 | 8.5 | Screw | Bright Chrome | Conical | Nut Fixing | Yes | F8412-T8M | 1 | ||
| F459 | 13 | 26 | 8.5 | Screw | Bright Chrome | Conical | Nut Fixing | Yes | 1 | |||
| F460 | 13 | 26 | 8.5 | Screw | Bright Chrome | Conical | Nut Fixing | Yes | 1 | |||
| F462 | 13 | 26 | 8.5 | Screw | Bright Chrome | Conical | Nut Fixing | Yes | 1 | |||
| F463 | 13 | 26 | 8.5 | Screw | Bright Chrome | Conical | Nut Fixing | Yes | F8088, F8412-C6M | 1 | ||
| F464 | 13 | 26 | 8.5 | Screw | Bright Chrome | Conical | Nut Fixing | Yes | F8075 | 1 | ||
| F465 | 13 | 26 | 8.5 | Screw | Bright Chrome | Conical | Nut Fixing | Yes | F8197, F8412-T6.5 | 1 |
Standard Features
- Standard movements: 1
- Standard finish: Bright chrome
- Fixing hole shape: Double D
- Standards: NF.C. 20010 April 1977 IPF 559 (French)
- Removable barrel system: Refer to sales department
- Standard range of cams available: See Cams
Additional information
13mm Tool Operated Water Resistant Camlock F457 technical drawing
