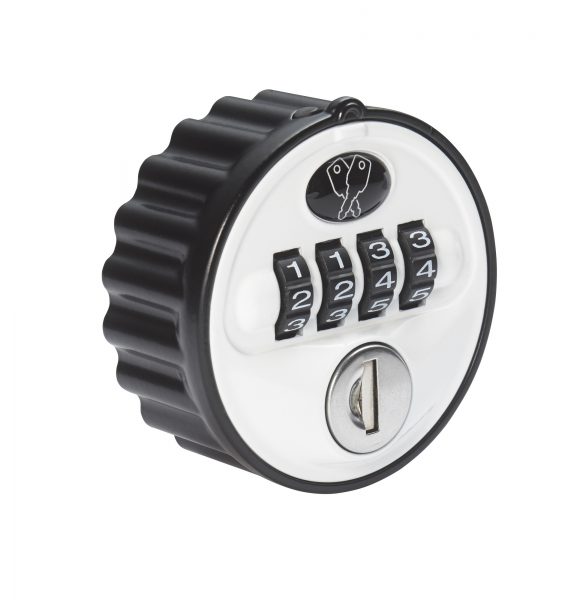

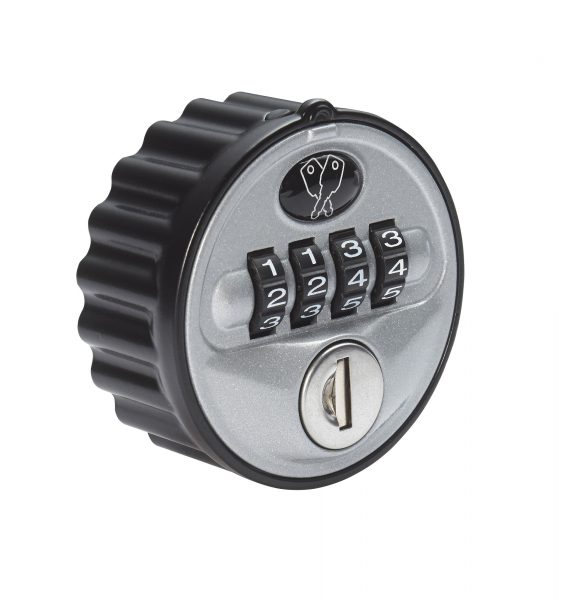

Combination Lock 2800
The 2800 mechanical combination lock is a 4-wheel combination lock featuring up to 10,000 unique combinations.
Available in single-use public mode and private mode versions, a simple button allows the user to set their own pin code and change it whilst the lock is open (private mode only).
The patented code finder function allows emergency access in the event of lost or forgotten codes. Technology within the lock allows for the wheels to be rotated, only locking into position once the correct digit has been identified.
For added security and durability in the event of abuse or attack, this lock is available with an optional ‘twist resist’ feature which has compatibility to most types and thickness of doors. When installing with “twist resist” the lock can be secured to the surface of the door giving it greater stability and preventing damage to doors from ‘twisting’ of the lock and dislodging the fixing screws. For further information please see Fitting Options below. Note: customer to specify fitting option choice at time of order.
With a robust design, range of options and simplicity of use, this combination lock is suitable for a broad range of applications including lockers, office furniture, and personal storage.
For further information you can download a copy of our brochure. User and Installation Guides can be found in the Downloads section below.
*NOTE: User mode MUST be specified at time of order – lock CANNOT be switched between public and private mode.
| Product Code | Code Combinations | Body Length | Body Width | Body Depth | Cam Fixing | Housing Fixing | Enquire |
|---|---|---|---|---|---|---|---|
| 2800 | 10000 | 20 | 56 | 28 | Screw | Nut Fixing |
- 4-wheel combination for 10,000 user codes
- Patented code finder function
- Code changing function
- Standard or twist resist versions available
- Standard fit with countersunk screws
- Twist resist with pan head screws
- Zinc die-cast construction
- Public and private mode versions available
- Left and right-hand versions available
- 1 – Right Hand (clockwise to open)
- 2 – Left Hand (anti-clockwise to open)
- Available in 3 standard powder coat finishes (Black, White and Silver)
- Customisable logo area for customer logo application or sequential numbers
- Manufactured to fit standard industry footprint 16mm x 19mm
- Diameter: 56 x 28mm (protrudes from door frame)
- Nut fixing: 3/4” – 27 UN x 20mm long (15.9mm A/F)
- Cam fixing: 8mm Sq. with M4 thread
Additional information
Part Number Guide – 2800/-/-/-/–/——-
| Product Number | Operating Mode | Barrel | Movement | Cover Plate Finish | Fitting Options |
|
2800 |
V
Private Mode |
0
Non-Mastered |
1
Right Hand (clockwise to open) |
1A
White |
9525001
Option 1 Standard Fit |
|
1B Black |
9525002
Option 2 Twist Resist |
||||
| 9525003
Option 3 Twist Resist |
|||||
| L
Public Mode |
5
Mastered |
2
Left Hand (anti-clockwise to open) |
1E
Silver |
9525004
Option 4 Twist Resist |
|
| 9525005
Option 5 Twist Resist |
Mechanical Combination Lock – Close Lock
Mechanical Combination Lock – Code finder function
Mechanical Combination Lock – Open Lock
Mechanical Combination Lock – Set a new user code

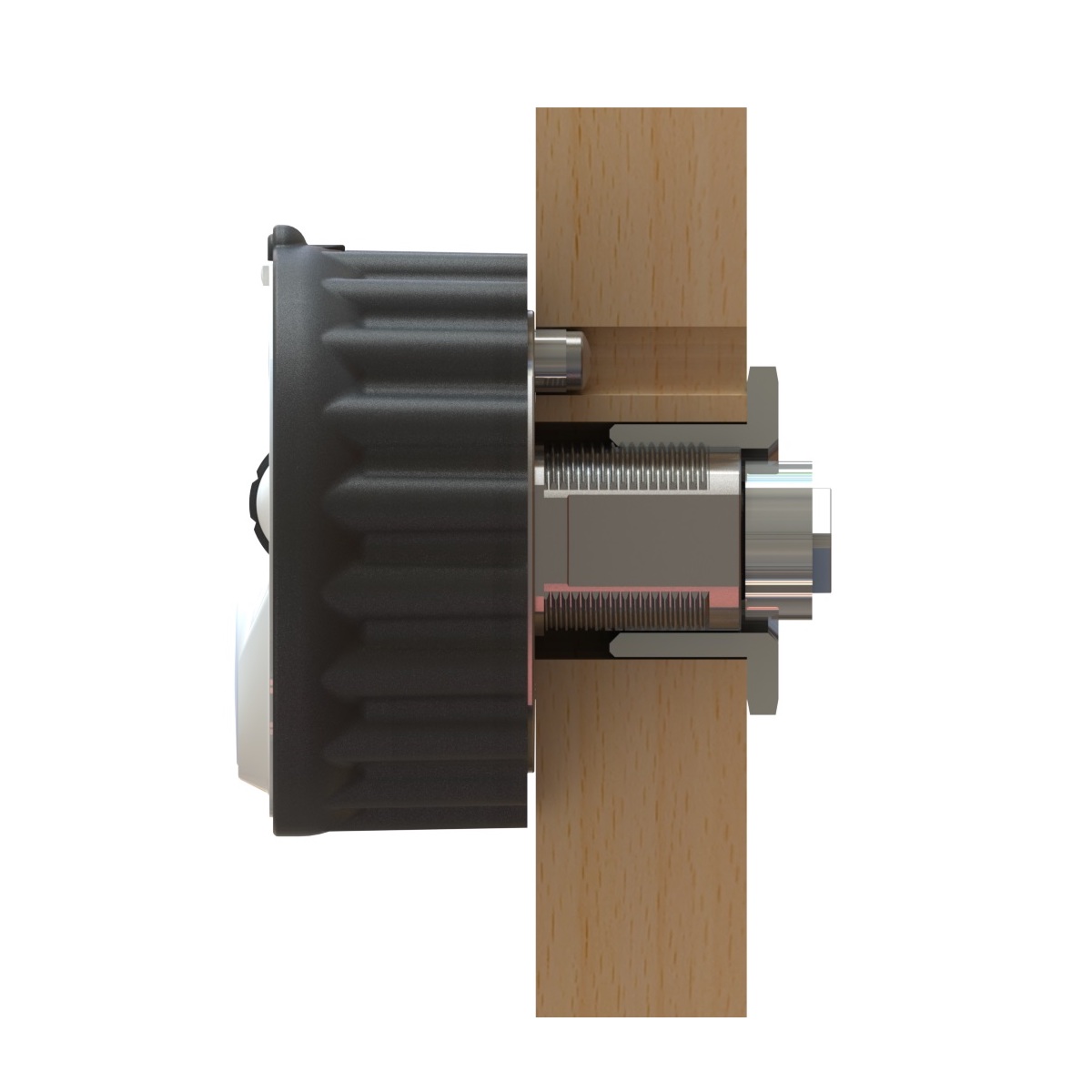

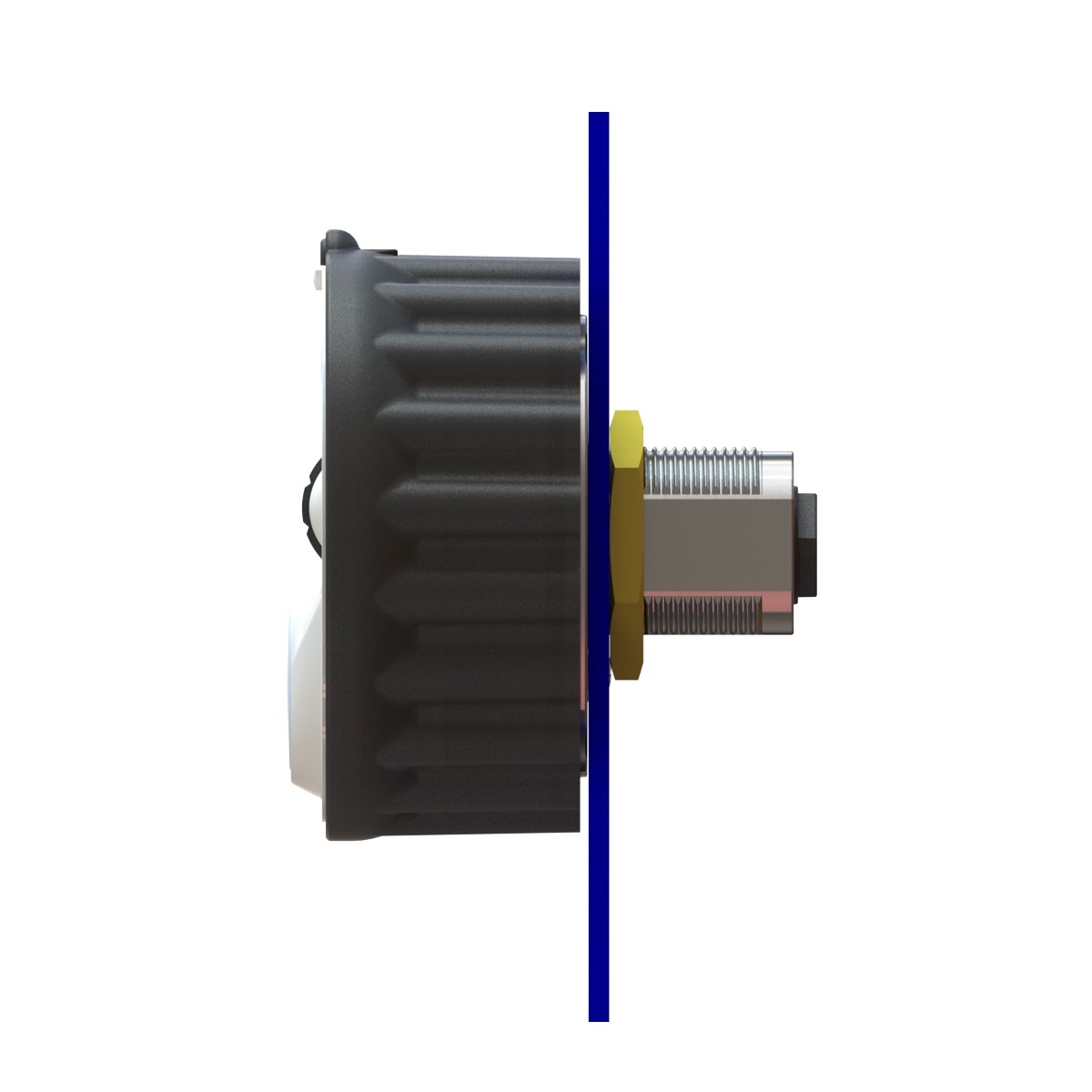

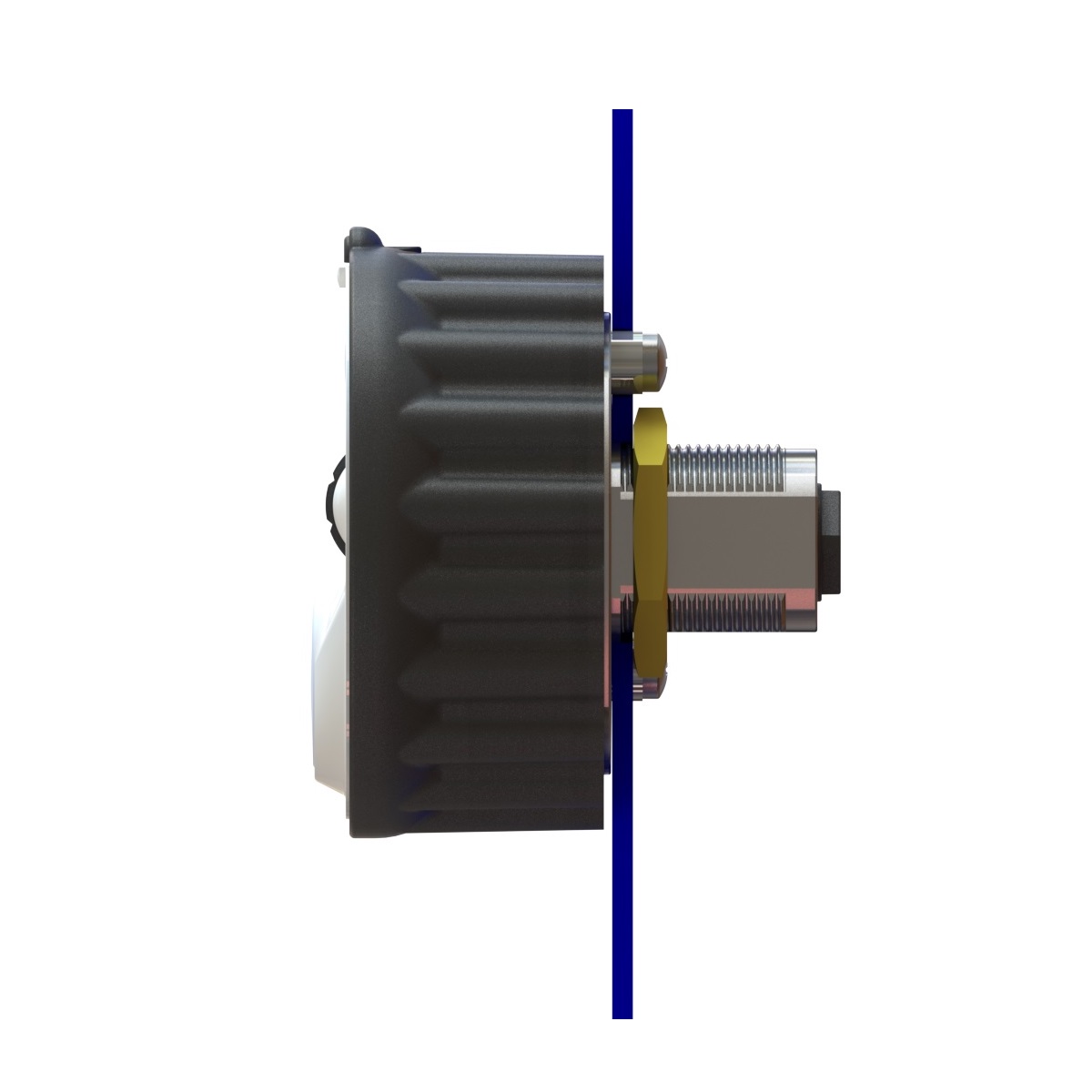

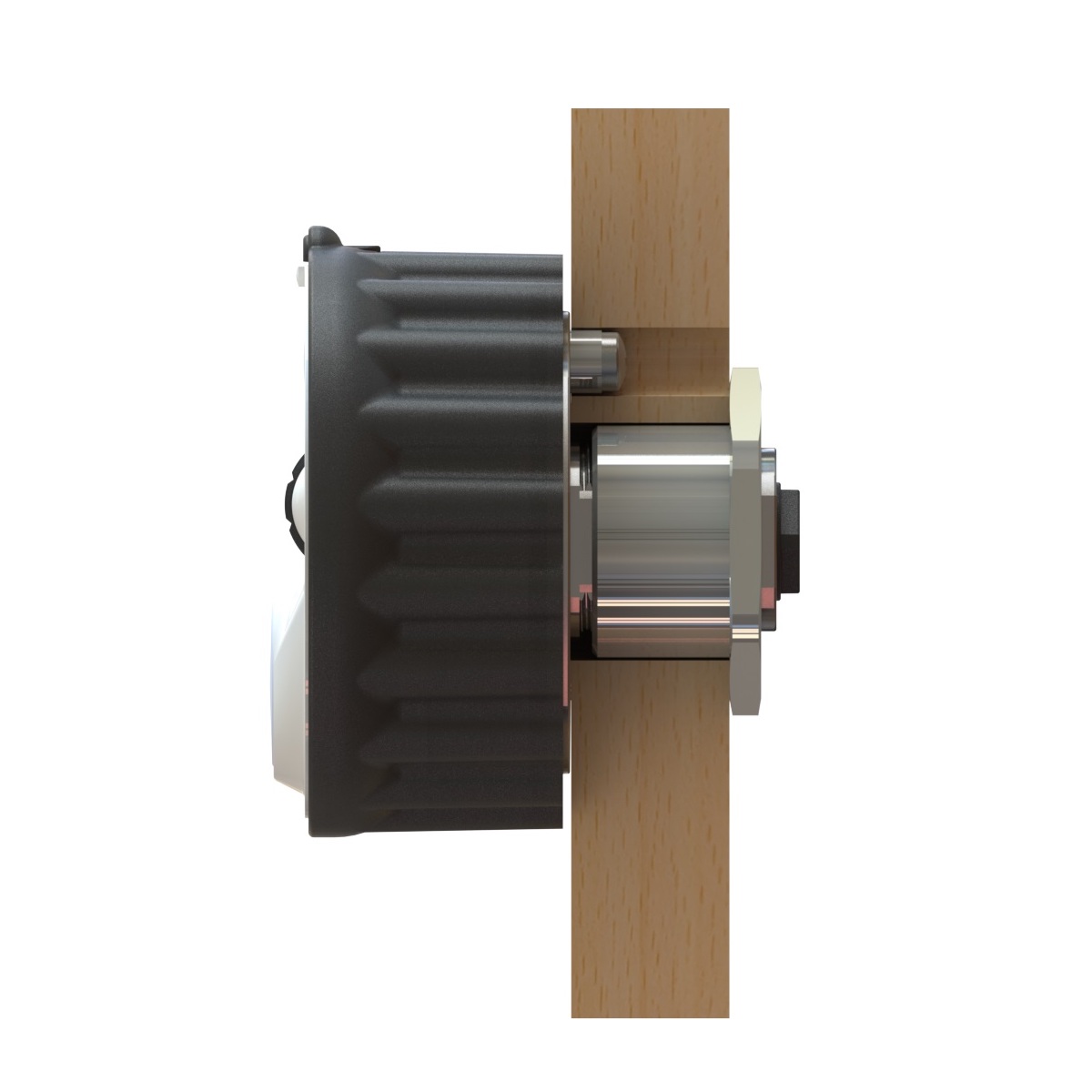

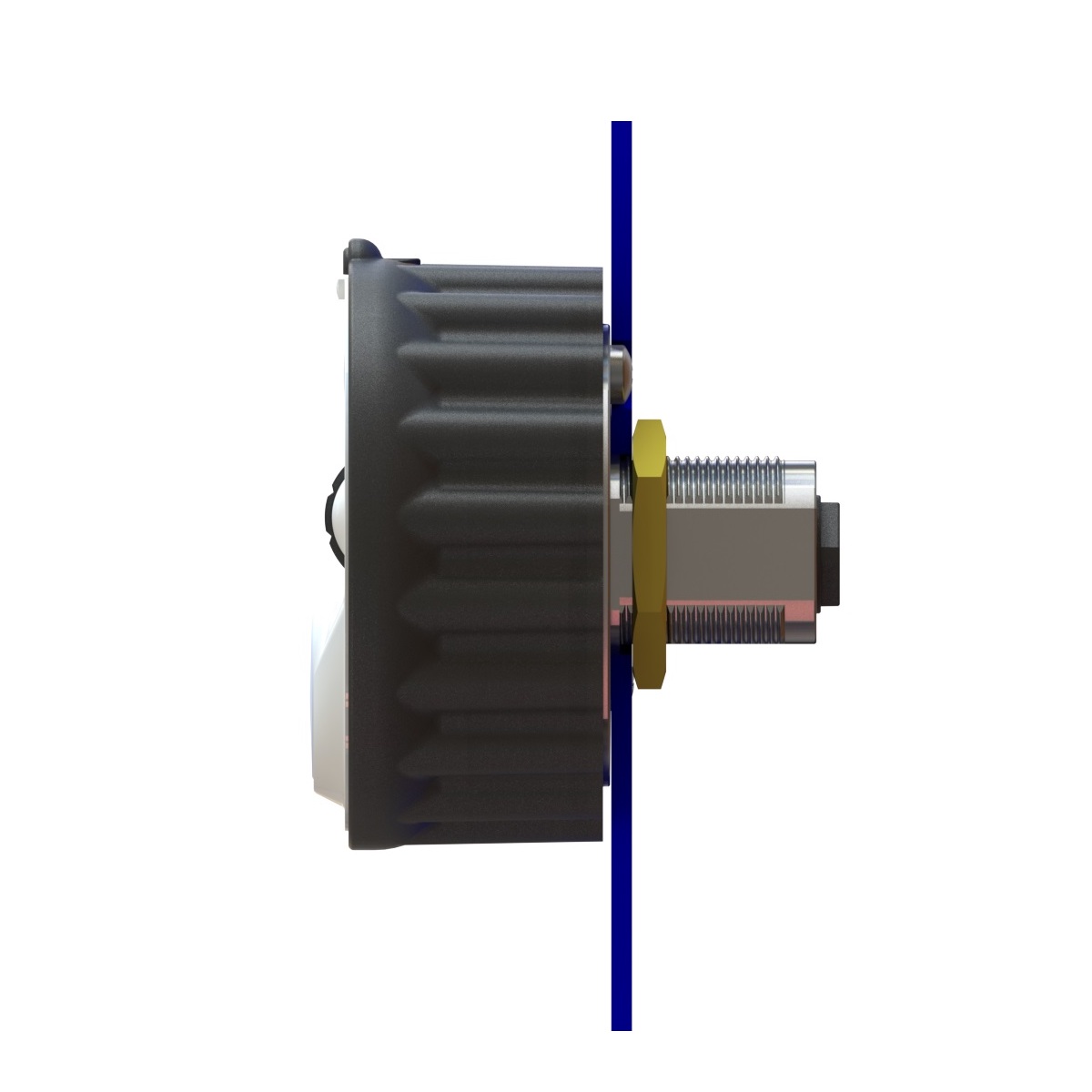

Fitting Options
|
|
|
|
|
|
|---|---|---|---|---|---|
| Product Code | 9525001 | 9525002 | 9525003 | 9525004 | 9525005 |
| Door Thickness | up to 14mm | up to 14mm | up to 14mm | 14mm – 19.5mm | 14mm – 23mm |
| Fixing Hole Details | 16A/F x Ø19 |
16A/F x Ø19 and 2 x Ø6.5 Holes or Ø19 and 2 x Ø6.5 Holes |
16A/F x Ø19 and 2 x Ø6.5 Holes or Ø19 and 2 x Ø6.5 Holes |
Ø22.5 and 2 x Ø6.5 Holes | Ø22.5 and 2 x Ø6.5 Holes |
| Kit Contents |
Standard Housing Nut *2 x CSK Screws 1 x M4 x 6 Patch Screw 1 x M4 Washer *supplied fitted to lock |
Standard Housing Nut *2 x Pan Head Screws 1 x M4 x 6 Patch Screw 1 x M4 Washer *supplied fitted to lock |
Standard Housing Nut *2 x Pan Head Screws *2 x Pan Head Spacers 1 x M4 x 6 Patch Screw 1 x M4 Washer *supplied fitted to lock |
Extension Housing Nut *2 x Pan Head Screws *2 x Pan Head Spacers 1 x M4 x 6 Patch Screw 1 x M4 Washer *supplied fitted to lock |
Extension Housing Nut *2 x Pan Head Screws *2 x Pan Head Spacers 1 x Cam Extension 6.25mm 1 x M4 x 12 Patch Screw 1 x M4 Washer *supplied fitted to lock |
