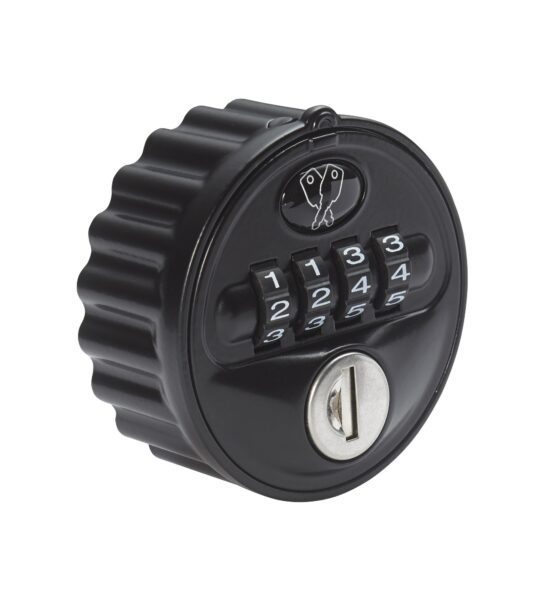

Wet Area Combination Lock 2810
The 2810 wet area combination lock is a 4-wheel combination lock designed for use in chlorinated environments. Available in single-use public mode and private mode*, and featuring up to 10,000 unique combinations, this corrosion resistant combination lock is ideal for use on lockers and personal storage areas in gyms, spas, swimming pools and leisure facilities.
For added security and durability in the event of abuse or attack, this lock is available with an optional ‘twist resist’ feature which has compatibility to most types and thickness of doors. When installing with “twist resist” the lock can be secured to the surface of the door giving it greater stability and preventing damage to doors from ‘twisting’ of the lock and dislodging the fixing screws. For more information please see Fitting Options below. Note: customer to specify fitting option choice at time of order.
Additional features allow the user to set their own pin code and change it at any time (private mode only), whilst the patented code finding function allows emergency access in the event of lost or forgotten codes. The Xylan finish ensures corrosion resistance and fitting is made easy by the standard industry footprint.
For further information you can download a copy of our brochure. User and Installation Guides can be found in the downloads section below.
*NOTE: User mode MUST be specified at time of order – lock CANNOT be switched between public and private mode.
| Product Code | Code Combinations | Body Length | Body Width | Body Depth | Cam Fixing | Finish | Housing Fixing | Enquire |
|---|---|---|---|---|---|---|---|---|
| 2810 | 10000 | 20 | 56 | 28 | Screw | Black Xylan | Nut Fixing |
- 4-wheel combination for 10,000 user codes
- Patented code finder function
- Code changing function
- Standard or twist resist versions available
- Standard fit with countersunk screws
- Twist resist with pan head screws
- Zinc die-cast construction
- Public and private mode versions available
- Left and right-hand versions available
- 1 – Right Hand (clockwise to open)
- 2 – Left Hand (anti-clockwise to open)
- Xylan coating (black finish): corrosion resistant
- Customisable logo area for customer logo application or seqential numbers
- Manufactured to fit standard industry footprint 16mm x 19mm
- Diameter: 56 x 28mm (protrudes from door frame)
- Nut fixing: 3/4” – 27 UN x 20mm long (15.9mm A/F)
- Cam fixing: 8mm Sq. with M4 thread
Additional information
Part Number Guide – 2810/-/-/-/–/——-
| Product Number | Operating Mode | Barrel | Movement | Cover Plate Finish | Fitting Options |
|
2810 |
V Private Mode |
0 Non-Mastered |
1 Right Hand (clockwise to open) |
3B Black |

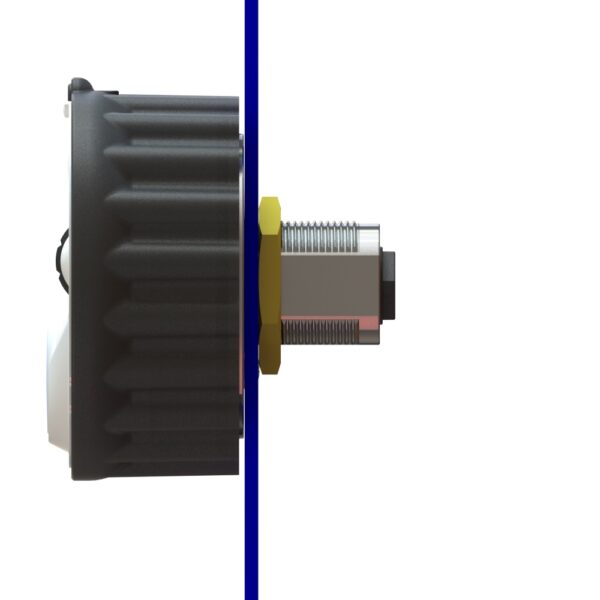

9525001 Option 1 Standard Fit |
|
9525002 Option 2 Twist Resist |
|||||
|
9525003 Option 3 Twist Resist |
|||||
|
L Public Mode |
5 Mastered |
2 Left Hand (anti-clockwise to open) |
9525004 Option 4 Twist Resist |
||
|
9525005 Option 5 Twist Resist |
Mechanical Combination Lock – Close Lock
Mechanical Combination Lock – Code finder function
Mechanical Combination Lock – Open Lock
Mechanical Combination Lock – Set a new user code
Fitting Options
|
|
|
|
|
|
|---|---|---|---|---|---|
| Product Code | 9525001 | 9525002 | 9525003 | 9525004 | 9525005 |
| Door Thickness | up to 14mm | up to 14mm | up to 14mm | 14mm – 19.5mm | 14mm – 23mm |
| Fixing Hole Details | 16A/F x Ø19 |
16A/F x Ø19 and 2 x Ø6.5 Holes or Ø19 and 2 x Ø6.5 Holes |
16A/F x Ø19 and 2 x Ø6.5 Holes or Ø19 and 2 x Ø6.5 Holes |
Ø22.5 and 2 x Ø6.5 Holes | Ø22.5 and 2 x Ø6.5 Holes |
| Kit Contents |
Standard Housing Nut *2 x CSK Screws 1 x M4 x 6 Patch Screw 1 x M4 Washer *supplied fitted to lock |
Standard Housing Nut *2 x Pan Head Screws 1 x M4 x 6 Patch Screw 1 x M4 Washer *supplied fitted to lock |
Standard Housing Nut *2 x Pan Head Screws *2 x Pan Head Spacers 1 x M4 x 6 Patch Screw 1 x M4 Washer *supplied fitted to lock |
Extension Housing Nut *2 x Pan Head Screws *2 x Pan Head Spacers 1 x M4 x 6 Patch Screw 1 x M4 Washer *supplied fitted to lock |
Extension Housing Nut *2 x Pan Head Screws *2 x Pan Head Spacers 1 x Cam Extension 6.25mm 1 x M4 x 12 Patch Screw 1 x M4 Washer *supplied fitted to lock |
