Standard Cams and Mini Cams

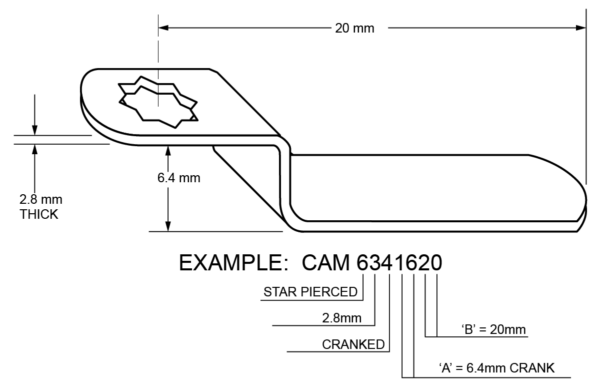

Understanding the 7 figure cam reference
| 1st Number | 2nd Number | 3rd Number | 4th & 5th Number | 6th & 7th Number | ||
|---|---|---|---|---|---|---|
| CAM PIERCING | CAM THICKNESS | SHAPE | DIMENSION ‘A’
IN 0.4mm INCREMENTS SEE TABLE BELOW |
DIMENSION ‘B’
IN MILLIMETRES (mm) |
||
| 6=
8 mm sq
FOR STANDARD CAMLOCK IF DIFFERENT WE WILL SPECIFY |
3 = 2.8mm |
0 |
 |
 |
||
1 |
||||||
2 |
4th & 5th
No.s |
SIZE IN
mm |
CAM
TYPE |
W = mm | ||
3 |
||||||
| M =
FOR MINI CAMLOCKS |
2 = 2mm | 4 |
02 04 08 12 14 16 20 24 28 32 |
0.8 1.6 3.2 4.8 5.6 6.4 7.9 9.5 11.1 12.7 |
M T 6 |
12.7 14.3 15.5 |
5 |
||||||
6 |
||||||
7 |
||||||
8 |
||||||
9 |
||||||
| T = 6.5 mm sq  FOR OFFICE FURNITURE & SOME CAMLOCKS |
||||||
NOT ALL CAM VARIATIONS MAY BE AVAILABLE, REFER TO PAGE STANDARD CAMS |
||||||
