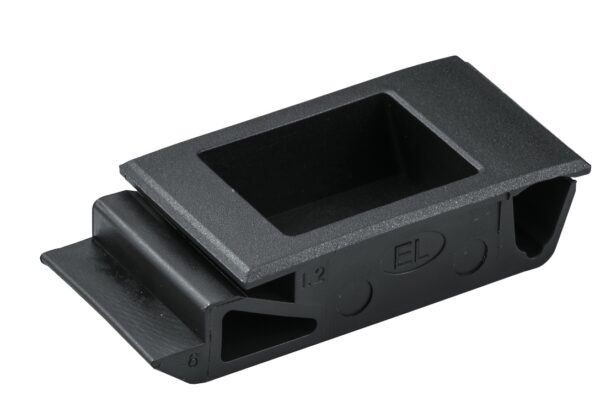

Slide Latch H301
The slide latch H301 provides a convenient, low cost solution for enclosures. With a simple sliding action to open and close, the latch can also be secured with a camlock where additional security is required. Easy to install, this latch snaps-in to a single rectangular hole for use in doors and access panels, IT cabinets, check-out counters and payment areas in shop and markets.
Lock Options
| Product Code | H Dimension | I Dimension | J Dimension | Material | Max Panel Thickness | Enquire |
|---|---|---|---|---|---|---|
| H301 | 1.8 mm | 6.6 mm | 6.6 mm | PA6 | 1.2 - 1.6 mm |
Standard Features
- Material: PA6
- Colour: Black
- Dimensions H & I: these can be changed to suit customers needs. Please contact our sales team.
Additional information
Slide Latch H301 technical drawing
| Product Number | Material | Colour | H Dimension | Panel Thickness | I Dimension | |||
| H301 | PA6 | 9005 | Black – standard | 2 | 1,8 mm | 1,2 – 1,6 mm | 2 | 6,6 mm |
| Other RAL* | Non-standard | |||||||
| Â Example | ||||||||
| H301 | PA6 | 9005 | 2 | 2 | ||||
*Available on customer request
