Rod Guide W109

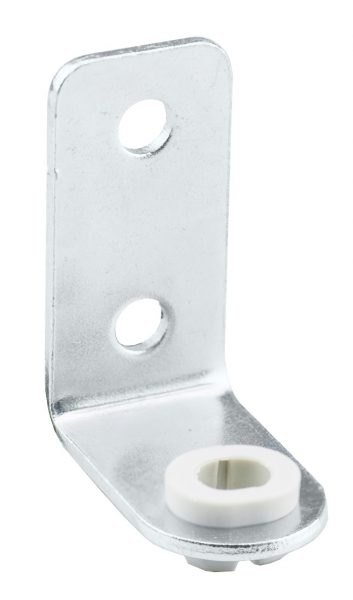

A rod guide W109 manufactured from steel with a zinc plated finish.
Lock Description
This guide can be used with rods PR36 and PR38 to form part of a rod control system that can be used in multi-point locking systems.
Full details and accessories can be found on the Program Scheme drawing.
Have a question?
Lock Options
| Product Code | Finish | Rods | Enquire |
|---|---|---|---|
| W109-1 | Zinc Plate | PR36 | |
| W109-2 | Zinc Plate | PR38 |
Standard Features
- Material: Steel
- Standard finish: Zinc plated
- Rod guide W109-1: use with rods PR36
- Rod guide W109-2: use with rods PR38 (except PR3813)
Additional information
Rod Guide W109 technical drawing
| Choose rod type | Rods (must select one) | Rod Guide | Dual Roller Catch | Adapter | |
| Â Rod control system without cam | Â PR10-A-B-L | Â W106 (20) | |||
| Â PR11-A-B-L | Â W106 (20) | ||||
| Â PR2-M-K-L | Â W106 (20) | Â W102 (19) | |||
| Â PR3803-A-B-L | Â W108-2 (15) | Â W105 (17) | |||
| Â PR3611-L | Â W109-1 (16) or W108-1 | ||||
| Â PR3612-L | Â W109-1 (16)Â or W108-1 | ||||
| Â PR3811-L | Â W109-2 (16) or W108-2* | Â *except PR3813 use W108-3 | |||
| Â PR3801-L | Â W109-2 (16) or W108-2* | Â W105 (17) | Â *except PR3813 use W108-3 | ||
| Â Rod control system with 1-point cam | Â PR10-A-B-L | Â W106 (20) | |||
| Â PR11-A-B-L | Â W106 (20) | ||||
| Â PR2-M-K-L | Â W106 (20) | Â W102 (19) | |||
| Â PR3803-A-B-L | Â W108-2 (15) | Â W105 (17) | |||
| Â PR3611-L | Â W109-1 (16)Â or W108-1 | ||||
| Â PR3612-L | Â W109-1 (16)Â or W108-1 | ||||
| Â PR3811-L | Â W109-2 (16) or W108-2* | Â *except PR3813 use W108-3 | |||
| Â PR3801-L | Â W109-2 (16) or W108-2* | Â W105 (17) | Â *except PR3813 use W108-3 | ||
