Digital Combination Slamlock 37800/2382

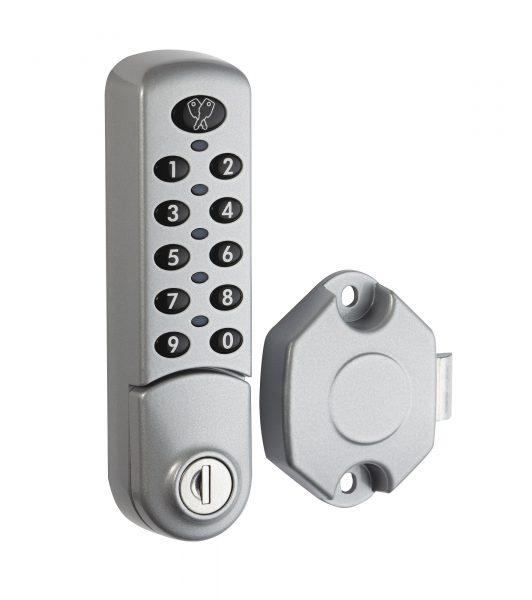

The keyless, electronic slamlock 37800 has the same design and features as the standard 3780 digital combination lock, but with a ‘slam’ action camlock. This means the door will automatically lock when closed or slammed shut.
Lock Description
The lock comprises of a standard 3780 digital code lock with an “0” barrel length, and a slamlock attachment 2382 shown in the Technical Drawing below.
Unique to all our digital code locks, you can use our steel override key to bypass the keyless locking feature when immediate supervisory access is necessary.
Compatible with the RAS remote allocation system, typical applications for this lock include Enclosures, Lockers and Postal.
For further information email or contact us on +44 (0) 121 505 0400.
Have a question?
Lock Options
| Product Code | Body Height | Body Width | Body Depth | Barrel Length | Enquire |
|---|---|---|---|---|---|
| 37800 | 136 | 37 | 27 | 1.0mm |
Standard Features
- Standard finish: Black, silver or white
- Fixing options:
- Vertical, left or right hand
- Two or three point
- User modes: Public mode, private mode, technician mode or RAS (available on request)
- User codes: 8-digit master code; 6-digit sub-master code; 4-digit user code
- Steel override key (2-keys supplied per 50 locks)
- Wide variety of cams
- LED indicator lights
- Audible keypad
- Battery condition indicator
- Auto unlock mode
- 2 x AA batteries (included)
- Up to 50,000 cycles per pair of batteries
Optional Features
- Door open alarm
- Alternative colours
- Pre-programmed modes and codes
- Customised logo
Additional information
Digital Combination Slamlock 37800/2382 technical drawing
Digital Combination Lock (37800/2382) CAD Files
Download
Digital Combination Lock (3780/82/800) Installation Instructions
Download
Digital Combination Lock (3780/81/82/84/800) Programming Instructions
Download
Digital Combination Locks (3780/81/82/84/800) Private User Instructions
Download
Digital Combination Locks (3780/81/82/84/800) Public User Instructions
Download
Part Number Guide – 3780/-/-/-/-/–
| Product Number | Barrel Length |
Keypad Orientation |
Finish | Colour | RAS |
| 3780 Standard DCL |
0 1mm |
1 Vertical |
1 Powder Coat |
A White |
-R |
| 2 RH |
B Black |
||||
| 3 LH |
E Silver |
