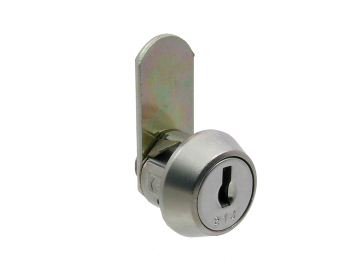

9.5mm-10.4mm Mini Camlock 1372
A series of 9.5mm and 10.4mm Mini Camlocks available in Bright Chrome with a round (with notches) fixing hole shape.
Lock Description
Camlock B181 can be shuttered and greased for greater protection when used outdoors making it ideal for applications such as Automotive, Enclosures and Postal.
Have a question?
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Finish | Head Shape | Housing Fixing | Max Panel Thickness | Version | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1372 | 200 | 10.4 | 23.6 | 8 | Bright Chrome | Conical | Snap In Fix | 1.8 | Standard | ||
| 1472 | 2000 | 9.5 | 23.6 | 8 | Bright Chrome | Conical | Snap In Fix | 1.8 | Standard | ||
| 4672 | 200 | 9.5 | 23.6 | 8 | Bright Chrome | Conical | Snap In Fix | 1.8 | Standard | ||
| B181 | 200 | 9.5 | 23.6 | 8 | Bright Chrome | Conical | Snap In Fix | 1.8 | Shuttered |
Standard Features
- Standard movements: 1, 2, 3, 4, 8, 9
- Lock Combinations: 200-2000
- Standard finish: Bright chrome
- Fixing hole shape: Round with notches
- M Keyed system supplied to order only
- Dimension ‘B’ Specification: See Cams
Additional information
9.5mm-10.4mm Mini Camlock 1372 technical drawing
