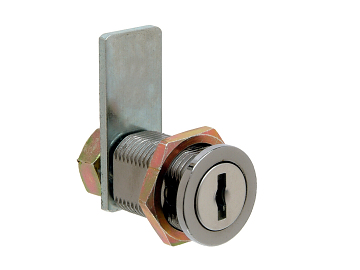

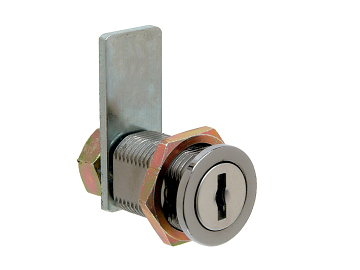

28.35mm Camlock 0869
A 28.35mm Camlock 0869 available in Bright Chrome with a Double D fixing hole shape. This camlock is ideal for many industries and applications including Automotive, Asset Management and Enclosures.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Cam Fixing | Finish | Head Shape | Housing Fixing | Max Panel Thickness | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0869 | 2000 | 28.35 | 25 | 2.9 | Nut + Washer | Bright Chrome | Cylindrical | Nut Fixing | 20 |
Standard Features
- Standard movements: 1, 2
- Lock Combinations: 2000
- Standard finish: Bright chrome
- Fixing hole shape: Double D
- M Keyed system supplied to order only
- Dimension ‘X’ Specification: See Cams
Additional information
28.35mm Camlock 0869 technical drawing
