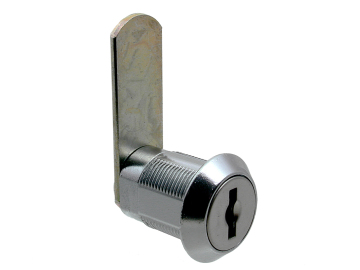

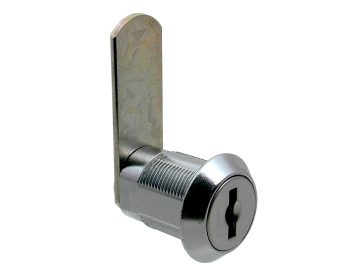

22.2mm-22.4mm Camlock B561
A series of 22.2mm and 22.4mm Camlocks in Bright Chrome. These camlocks are ideal for numerous applications including Medical Furniture and Automotive.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Finish | Fixing Hole Size | Head Shape | Housing Fixing | Max Panel Thickness | Version | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0815 | 2000 | 22.4 | 24 | 4.5 | Bright Chrome | 17.6 x 20.1 | Conical | Nut Fixing | 10 | Standard | ||
| 0865 | 2000 | 22.4 | 24 | 4.5 | Bright Chrome | 17.6 x 20.1 | Conical | Nut Fixing | 10 | Shuttered | ||
| B561 | 2000 | 22.4 | 25 | 4.5 | Bright Chrome | 16.6 x 19.1 | Conical | Horseshoe Clip | 10 | Standard | ||
| B938 | 2000 | 22.4 | 25 | 4.5 | Bright Chrome | 16.6 x 19.1 | Conical | Nut Fixing | 10 | Standard | ||
| B962 | 200 | 22.2 | 22.5 | 4.5 | Bright Chrome | 16.6 x 19.1 | Conical | Nut Fixing | 10 | Shuttered | ||
| C527 | 10000 | 22.4 | 25 | 4.5 | Bright Chrome | 17.6 x 20.1 | Conical | Nut Fixing | 10 | Shuttered | ||
| C731 | 10000 | 22.4 | 25 | 4.5 | Bright Chrome | 16.6 x 19.1 | Conical | Nut Fixing | 10 | Shuttered |
Standard Features
- Standard movements: 1, 3, 4 (B962 1, 2, 3, 4 only)
- Lock Combinations: 200-10000
- Standard finish: Bright chrome
- Fixing hole shape: Double D (refer to technical drawing)
- M Keyed system supplied to order only
- Cam fixing: B938 cam fixed by nut and washer
- Comprehensive range of Cams available: See Cams
Additional information
22.2mm-22.4mm Camlock B561 technical drawing
