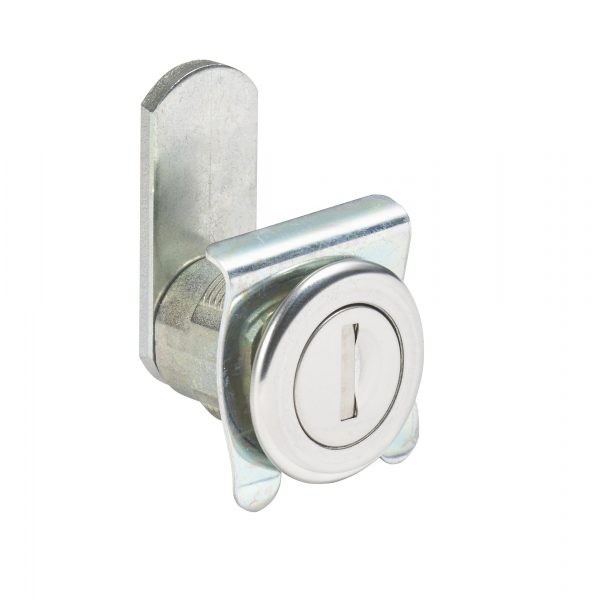

20mm Camlock F403

A 20mm Camlock F403 available with a Stainless Steel Cap. An ideal camlock for many applications including Heavy Duty Vehicles and Metal Office Furniture.

View Lock Details
Featured Technicals
Lock Description

This camlock is available with the S-Line antibacterial over moulded keys. The unique over moulding process helps fight bacteria and avoids cross contamination between multiple users of the same key. Download the brochure or contact us for more information.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth Head Shape Max Panel Thickness Enquire
F403 2000 20 25 3 Round 1.3 - 10
Standard Features
  • Standard movements: 1, 2, 3
  • Lock Combinations: 2000
  • Fixing hole shape: Special with Anti-Turn Lugs (see technical drawing)
  • M Keyed system supplied to order only
  • Dimension ‘B’ Specification: See Cams

Additional information

20mm Camlock F403 technical drawing
