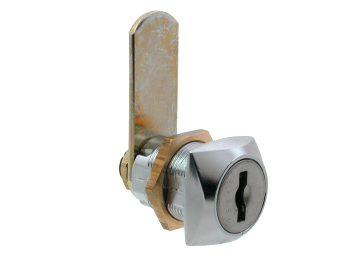

20mm Camlock 0801
A range of 20mm Camlocks available in Bright Chrome with a Double D hole fixing shape.
Lock Description
The shuttered barrel on many of these Camlocks can be passivated and greased for greater protection when used outdoors.
This makes them ideal for applications such as Automotive, Enclosures and Postal.
Have a question?
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Finish | Head Shape | Housing Fixing | Max Panel Thickness | Version | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0801 | 2000 | 20 | 24 | 7 | Bright Chrome | Square | Nut Fixing | 12 | Standard | ||
| 0803 | 2000 | 20 | 24 | 7 | Bright Chrome | Square | Horseshoe Clip | 12 | Standard | ||
| 0805 | 2000 | 20 | 23 | 7 | Bright Chrome | Conical | Nut Fixing | 12 | Standard | ||
| 0807 | 2000 | 20 | 23 | 7 | Bright Chrome | Conical | Horseshoe Clip | 12 | Standard | ||
| 0851 | 2000 | 20 | 24 | 7 | Bright Chrome | Square | Nut Fixing | 12 | Shuttered | ||
| 0853 | 2000 | 20 | 24 | 7 | Bright Chrome | Square | Horseshoe Clip | 12 | Shuttered | ||
| 0855 | 2000 | 20 | 23 | 7 | Bright Chrome | Conical | Nut Fixing | 12 | Shuttered | ||
| 0857 | 2000 | 20 | 23 | 7 | Bright Chrome | Conical | Horseshoe Clip | 12 | Shuttered |
Standard Features
- Standard movements: 1, 2, 3, 4
- Lock Combinations: 2000
- Standard finish: Bright chrome
- Fixing hole shape: Double D
- M Keyed system supplied to order only
- Dimension ‘B’ Specification: See Cams
Additional information
20mm Camlock 0801 technical drawing
