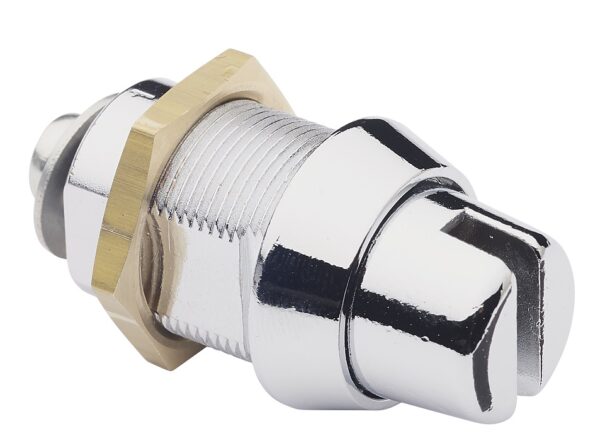

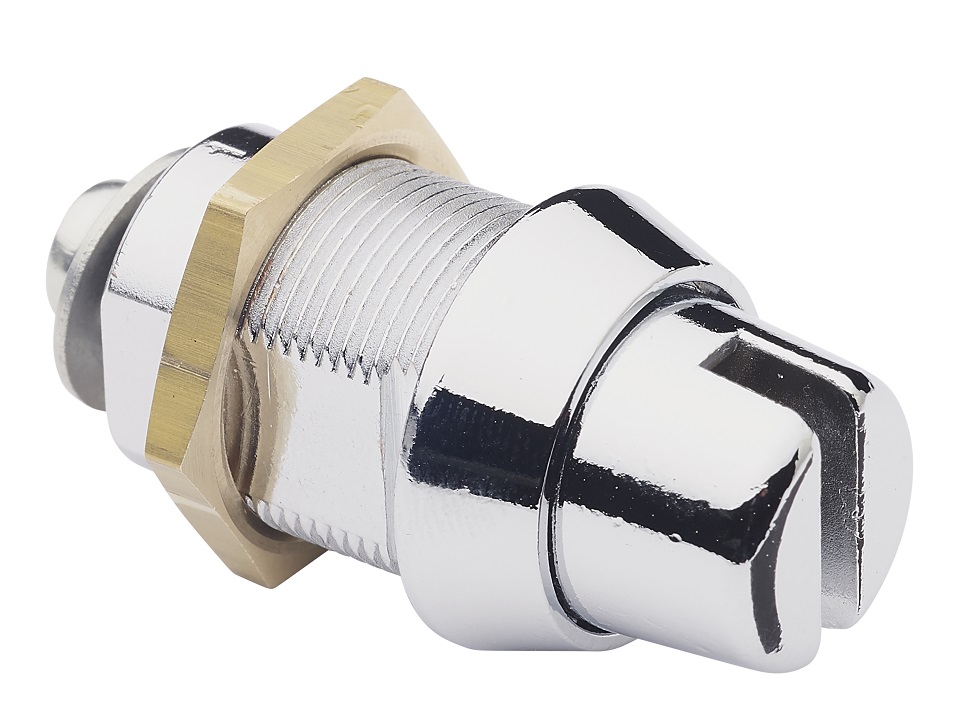

20mm-22.4mm Camlock F355

A 20mm and 22.4mm series of Camlocks in Bright Chrome with a Double D fixing hole shape. These camlocks have an anti-kicking system, making them ideal for secure applications such as Enclosures and Asset Security.

View Lock Details
Featured Technicals
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth Cam Fixing Finish Fixing Hole Size Head Shape Housing Fixing Max Panel Thickness Movement Enquire
F355 2000 20 22 6.9 Nut Bright Chrome 19.2 x 16 Conical Nut Fixing 12 3
F497 2000 22.4 22 10.8 Nut Bright Chrome 19 x 16.6 Conical Nut Fixing 12 3
Standard Features
  • Standard movements: 3
  • Lock Combinations: 2000
  • Standard finish: Bright chrome, brass nickel key
  • Fixing hole shape: Double D
  • M Keyed system supplied to order only
  • ‘X’ dimension: Body Length
  • Comprehensive range of cams available: See Cams

Additional information

20mm-22.4mm Camlock F355 technical drawing
