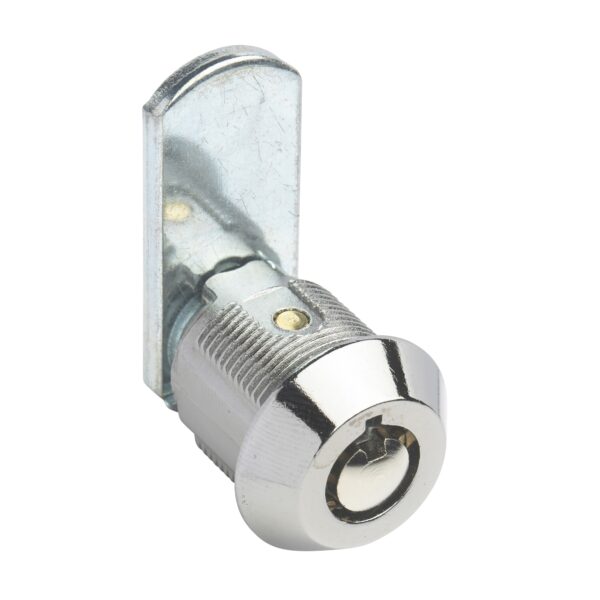

18mm – 30mm Radial Pin Tumbler Camlock 2403
A range of 18mm to 30mm radial pin tumbler camlocks in bright chrome. This lock has an anti-drill feature as standard making it ideal for applications such as asset security or anywhere high security is required.
Please note: this range of locks all use a Standard Cam
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Finish | Head Shape | Housing Fixing | Max Panel Thickness | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 2403 | 10000 | 18 | 22.2 | 5.6 | Bright Chrome | Conical | Nut Fixing | 7.2 | ||
| 2404 | 10000 | 22.7 | 22.2 | 5.6 | Bright Chrome | Conical | Nut Fixing | 12 | ||
| 2414 | 10000 | 30 | 22.2 | 5.6 | Bright Chrome | Conical | Nut Fixing | 21 | ||
| 2422 | 10000 | 21.2 | 22.2 | 2.4 | Bright Chrome | Cylindrical | Nut Fixing | 7.2 |
Standard Features
- Standard movements: 1, 2, 3, 4, 8, 9 (see RPT Lock Movements)
- Lock Combinations: 10,000
- Standard finish: Bright chrome
- Fixing hole shape: Double D
- M Keyed system: Available for movements 1 and 2 only, number of differs 2,000
- Dimension ‘P’: Max Panel Thickness (see Lock Options above)
- Dimension ‘X’: Body Length (see Lock Options above)
- Dimension ‘B’ specification: See Standard Cams
Additional information
18mm - 30mm Radial Pin Tumbler Camlock 2403 technical drawing
