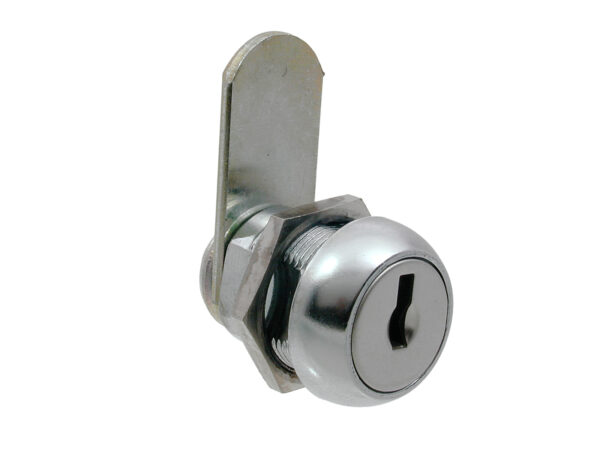

16mm Camlock 1332

A range of 16mm Camlocks available in Bright Chrome with a Double D hole fixing shape.

View Lock Details
Featured Technicals
Lock Description

Barrels on some of these Camlocks can be passivated and greased for greater protection when used outdoors. This makes it ideal for applications such as Automotive, Enclosures and Postal.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth Finish Head Shape Housing Fixing Version Enquire
1332 200 16 22.5 7 Bright Chrome Round Nut Fixing Standard
1333 200 16 22.5 7 Bright Chrome Round Horseshoe Clip Standard
1348 200 16 22.5 7 Bright Chrome Round Nut Fixing Shuttered
1358 200 16 22.5 7 Bright Chrome Round Horseshoe Clip Shuttered
1432 2000 16 22.5 7 Bright Chrome Round Nut Fixing Standard
1433 2000 16 22.5 7 Bright Chrome Round Horseshoe Clip Standard
4648 200 16 22 7 Bright Chrome Round Nut Fixing Shuttered
4658 200 16 22 7 Bright Chrome Round Horseshoe Clip Shuttered
B197 200 16 23 7 Bright Chrome Cylindrical Horseshoe Clip Standard
B223 200 16 23 7 Bright Chrome Cylindrical Nut Fixing Standard
B332 200 16 24.75 4.3 Bright Chrome Conical Nut Fixing Standard
Standard Features
  • Standard movements: 1, 2, 3, 4, 5, 6, 7 (5, 6 & 7 not available with cylindrical head)
  • Lock Combinations: 200-2000
  • Standard finish: Bright chrome
  • Fixing hole shape: Double D
  • M Keyed system supplied to order only
  • Dimension ‘X’ Specification: See Cams

Additional information

16mm Camlock 1332 technical drawing
