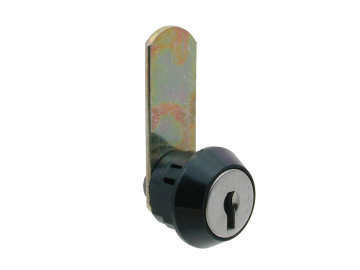

11mm Camlock B735
A series of 11mm Camlocks available in Bright Nickel with a black plastic housing. These camlocks are ideal for many applications including Asset Management and Enclosures.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Cam Fixing | Finish | Head Shape | Housing Fixing | Max Panel Thickness | Movement | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B735 | 200 | 11 | 24 | 6.9 | Circlip | Bright Nickel | Conical | Snap In Fix | 1 - 1.2 | 1 | ||
| B764 | 200 | 11 | 24 | 6.9 | Circlip | Bright Nickel | Conical | Snap In Fix | 0.8 - 1 | 1 | ||
| B906 | 200 | 11 | 24 | 6.9 | Circlip | Bright Nickel | Conical | Snap In Fix | 1.35 - 1.55 | 1 |
Standard Features
- Standard movements: 1
- Lock Combinations: 200
- Standard finish: Bright nickel
- Fixing hole shape: Double D
- M Keyed system supplied to order only
- Comprehensive range of Cams available: See Cams
Additional information
11mm Camlock B735 technical drawing
