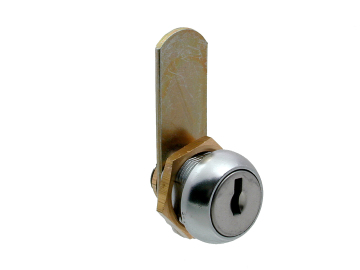

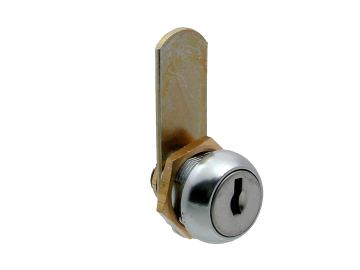

11mm Camlock 0361
A range of 11mm Camlocks available in Bright Chrome with a Double D hole fixing shape.
Lock Description
The shuttered versions can be passivated and greased for greater protection when used outdoors, making them ideal for applications such as Automotive, Enclosures and Postal.
Have a question?
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Cam Fixing | Finish | Head Shape | Housing Fixing | Max Panel Thickness | Version | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4669 | 200 | 11 | 22 | 7 | Circlip | Bright Chrome | Round | Nut Fixing | 4 | Shuttered | ||
| 4673 | 200 | 11 | 22 | 7 | Circlip | Bright Chrome | Round | Horseshoe Clip | 3.2, 7 | Shuttered | ||
| 0361 | 200 | 11 | 22 | 7 | Nut | Bright Chrome | Round | Nut Fixing | 4 | Standard | ||
| 0362 | 200 | 11 | 22 | 7 | Nut | Bright Chrome | Round | Horseshoe Clip | 3.2, 7 | Standard | ||
| 0609 | 200 | 11 | 22 | 7 | Nut | Bright Chrome | Round | Nut Fixing | 4 | Shuttered | ||
| 0610 | 200 | 11 | 22 | 7 | Nut | Bright Chrome | Round | Horseshoe Clip | 3.2, 7 | Shuttered | ||
| 0611 | 200 | 11 | 22 | 7 | Nut | Bright Chrome | Round | Nut Fixing | 4 | Standard | ||
| 0612 | 200 | 11 | 22 | 7 | Nut | Bright Chrome | Round | Horseshoe Clip | 3.2, 7 | Standard | ||
| B489 | 2000 | 11 | 23 | 6.9 | Circlip | Bright Chrome | Round | Nut Fixing | 4 | Standard |
Standard Features
- Standard movements: 1, 2, 3, 4, 5, 6, (Across rounds fixing not possible with movements 5, 6)
- Lock Combinations: 200-2000
- Standard finish: Bright chrome
- Fixing hole shape: Double D
- M Keyed system supplied to order only
- Dimension ‘B’ Specification: See Cams
Additional information
11mm Camlock 0361 technical drawing
