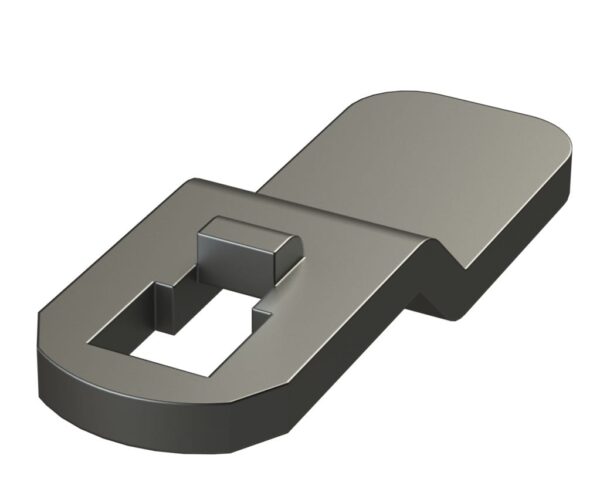

1 Point Cams

This range of 1-point cams can be used as a standlone locking mechanism for our swing handles or can be used in conjunction with our rod control system to create a complete locking system.

View Lock Details
1 Point Cams
1 Point Cams
Featured Technicals
Brochure
Drawing
Lock Description

For further information and guidance on which Rods and accessories are available please see the Program Scheme.

Have a question?
Contact Us
Lock Options
Product Code Finish Enquire
1-Point Cam Zinc Plate
Standard Features
  • Material: Steel
  • Finish: Zinc plated

Additional information

1 Point Cams technical drawing



Fixing Hole Steel Dimension (mm) Type of crank A Dimension (mm) B Dimension (mm) Additional bending
E 7 17 x 3,5 1 Dim ‘A’ expressed in 1 / 64 = 0,4 mm DB
1-Point Cams Fixing Hole 1-Point Cams_Crank Type 1 1-Point Cams_Dimension A 1-Point Cam_Dimension B 1-Point Cam_DB
3 DX
1-Point Cam_3
00 FLAT
06 2,4 mm
08 3,2 mm
12 4,8 mm
14 5,6 mm
16 6,4 mm
18 7,2 mm
20 8,0 mm
24 9,5 mm
26 10,4 mm
32 12,7 mm
64 25,4 mm

recommended angle 90°
A < 6 recommended angle 45°

 1-Point Cam_B
4
1-Point Cam_4 NOTE: 45° crank

Min B dimension 34 mm without DB or DX

Min B dimension 45 mm with DB or DX

NOTE: 90° crank

Min B dimension 30 mm without DB or DX

Min B dimension 45 mm with DB or DX

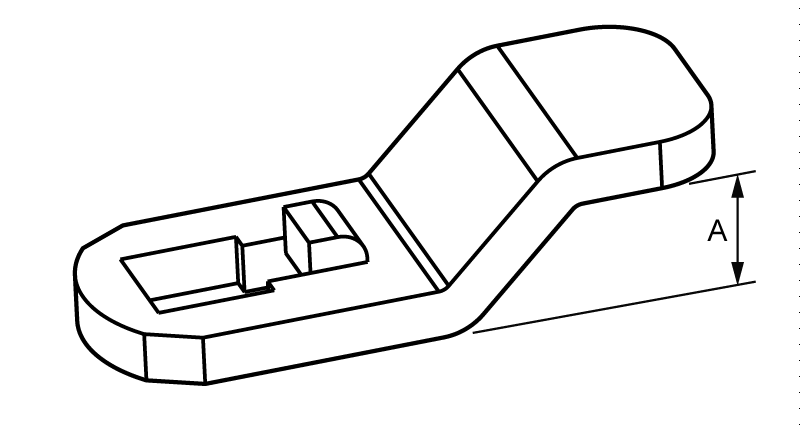

A
1-Point Cam_A

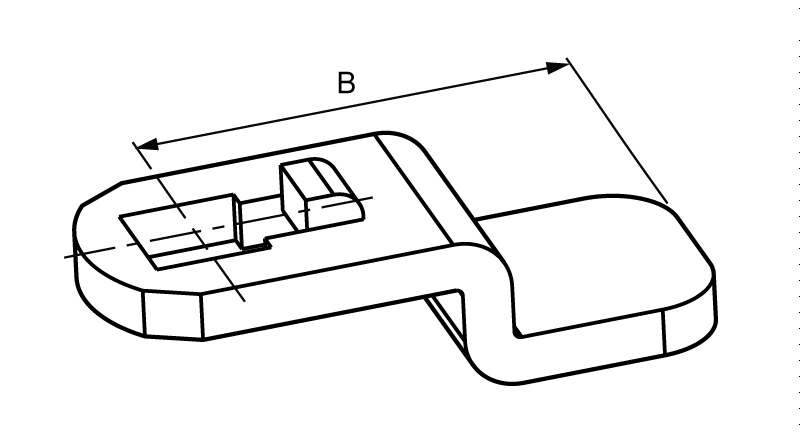

B
1-Point Cam_B
Examples
E 7 4 20 45 DB
E 7 3 06 45 DB



Locking Mechanism Rods (must select one) Cam Cover Cam Adapter Rod Guide Dual Roller Catch Rod Adapter
 1-Point Cam only P3150 (7) P3149 (8)
 Rod control system with
1-point cam		  PR10-A-B-L P3152 (5)  W106 (20)
 PR11-A-B-L P3152 (5)  W106 (20)
 PR2-M-K-L P3152 (5)  W106 (20)  W102 (19)
 PR3803-A-B-L P3152 (5)  W108-2 (15)  W105 (17)
 PR3611-L P3152 (5)  W109-1 (16) or W108-1
 PR3612-L P3152 (5)  W109-1 (16) or W108-1
 PR3811-L P3152 (5)  W109-2 (16) or W108-2*  *except PR3813 use W108-3
 PR3801-L P3152 (5)  W109-2 (16) or W108-2*  W105 (17)  *except PR3813 use W108-3
