Layout 30°
Layout 30°
Front
Layout 30°
Switch 9550023
Rear
Layout 45°
Layout 45°
Front
Layout 45°
Switch 9550026
Rear
Layout 60°
Layout 60°
Front
Layout 60°
Switches 9550002, 9550004 and 9550022
Rear
Layout 60°
Switches 9550005 and 9550025
Rear
Layout 60°
Switch 9550013
Rear
Layout 90°
Layout 90°
Front
Layout 90°
Switches 9550017 and 9550030
Rear
Layout 90°
Switches 9550011, 9550014 and 9550031
Rear

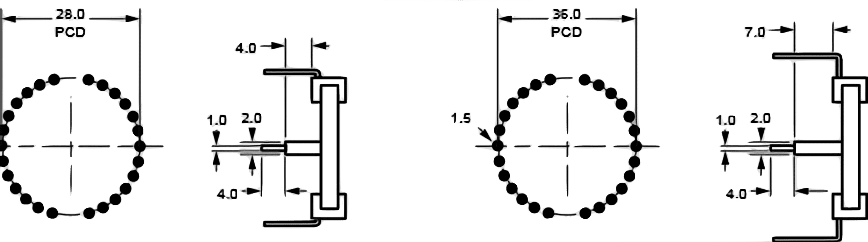

PCB Mounting Details
Standard printed circuit clips
Extended printed circuit clips for multi bank switch (Special)
