Overview

Keying Details

Keyed to pass: All locks have the same key number (Differ number), with one key opening all locks.

Keyed to differ: All locks have different key numbers (Differ number), each lock requiring its own key to open.

Note: Locks can also be supplied ‘Keyed in sets to pass’ – ‘Each set to differ’. This arrangement caters for places such as offices, hotel rooms and hospital rooms where all units in a given room will operate one key number, but differ from adjoining rooms.

D.N.O.C.: (Differ Number On Cap) will result in the key number being stamped on the lock front (cap). This assists in obtaining replacement keys if they are lost.

Mastering: Key series can be mastered at extra cost.

Please see the list below highlighting the Key Series available, and their attributes.

Order your spare and replacement keys on our website – click here!

Image Series Description Discs Levers Pins Entry Combs. Code Numbers

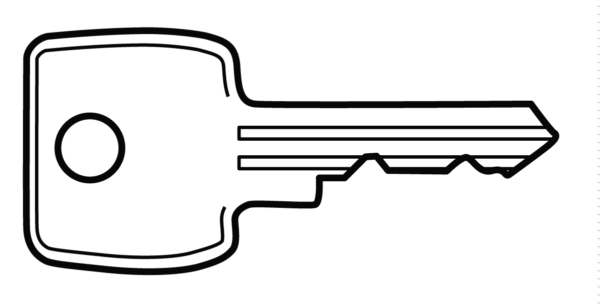

FFE 5 Disc 5 Single 4 FFE 3, 8, 17, 31

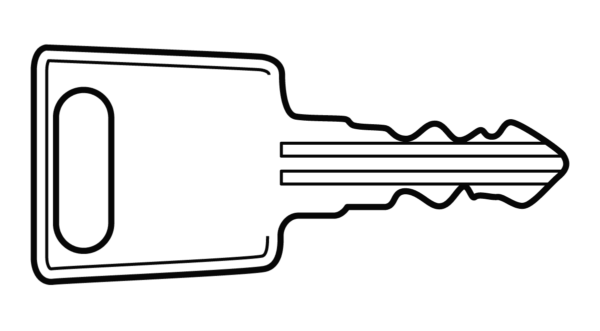

H 4 Disc 4 Double 50 H500 – H550

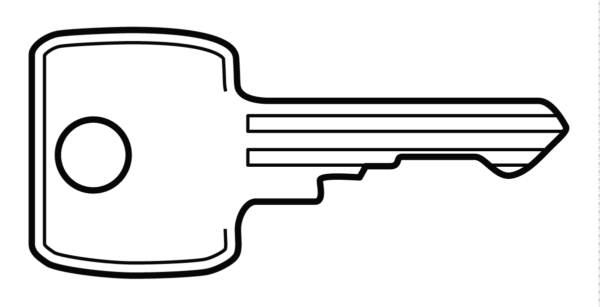

FS 5 Disc 5 Single 80 FS 876 – FS 995

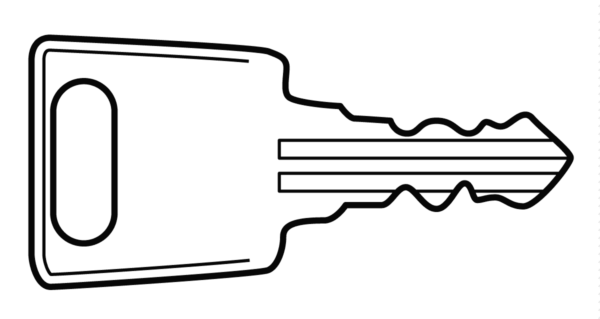

1F 5 Disc 5 Double 200 1F001 – 1F200

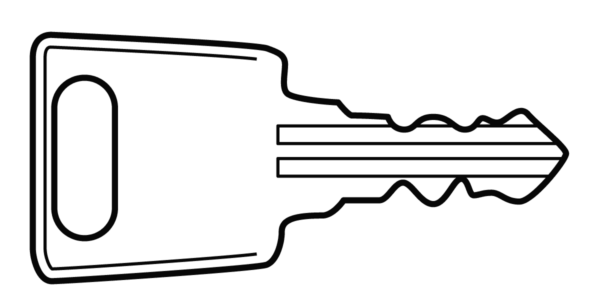

FH 5 Disc 5 Double 200 FH001 – FH200

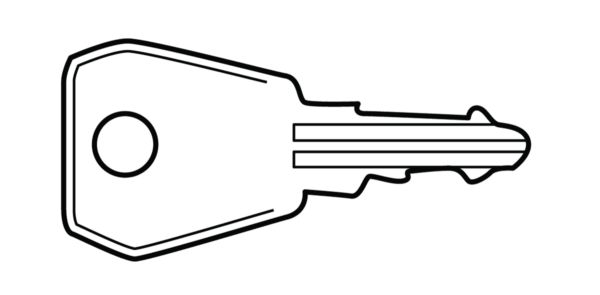

800 5 Disc 5 Double 200 801 – 1000
92 5 Disc 5 Single 200 92201 – 92400

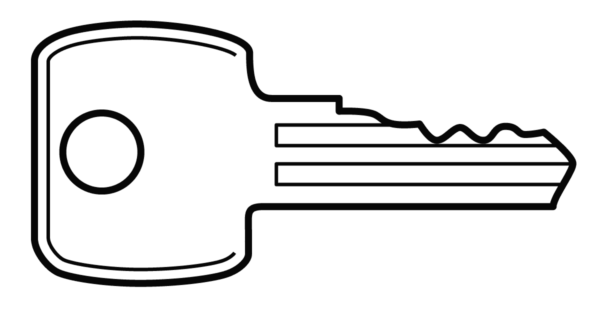

A.C.E.Y.Z Refer to sales department for specific information Single

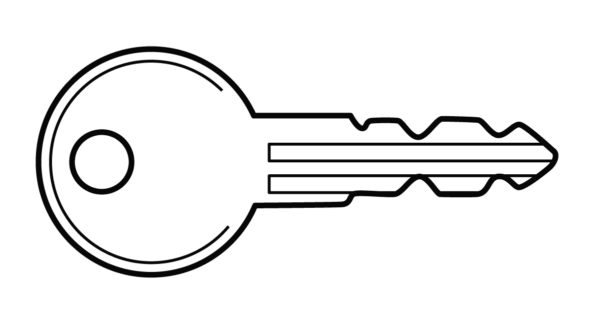

89 5 Disc 5 Double 200 89001 – 89200

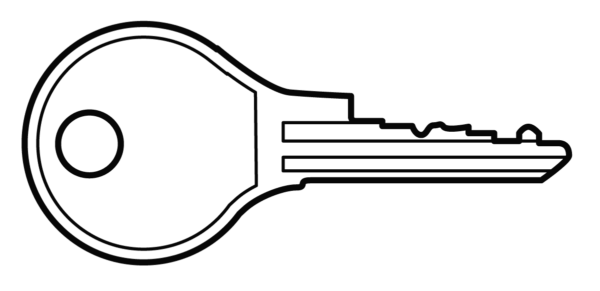

2D 5 Disc 5 Single 200 2D001 – 2D200

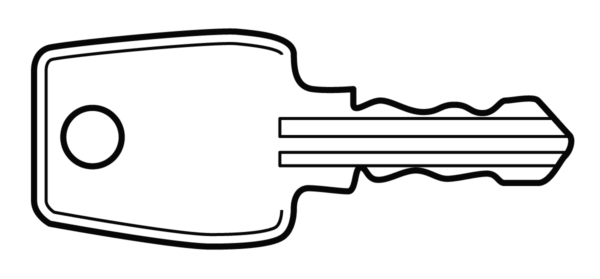

93E 5 Disc 5 Double 200 93401 – 93600

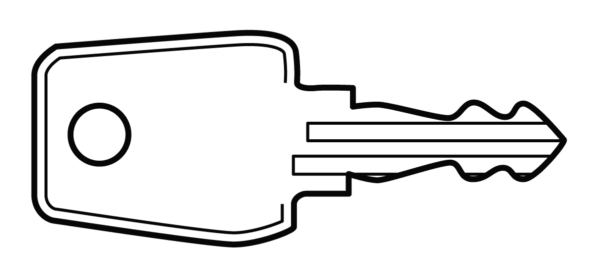

9000 5 Disc 5 Double 500 9001 – 9500

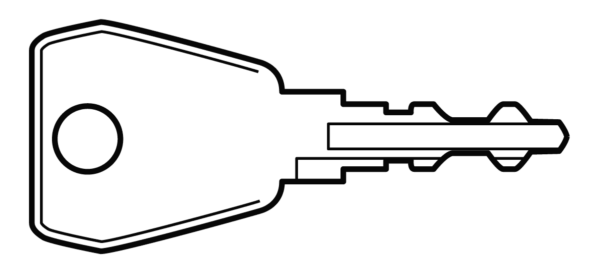

35 Removable barrel series 6 Double 500 35000 – 35499

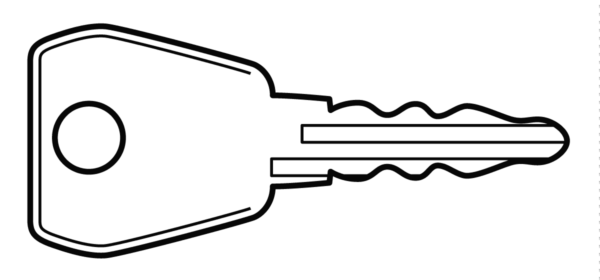

18 6 Disc 6 Double 1000 18000 – 18999
64 6 Disc 6 Double 1000 64001 – 65000
66-67 8 Disc 8 Double 1200 66001 – 67200

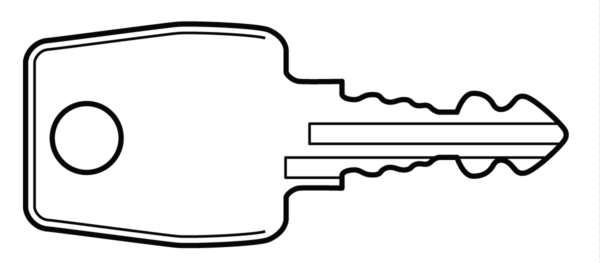

2000 7 Disc 7 Double 2000 2001 – 4000
85-87 8 Disc 8 Double 2000 85001 – 87000

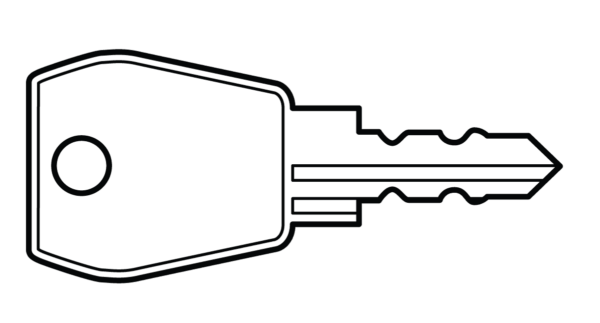

25-27 7 Disc 7 Double 2000 25001 – 27000

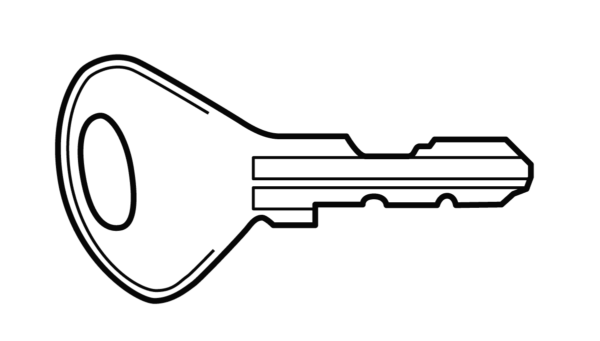

95-97 10 Disc 10 Single 2000 95001 – 9700

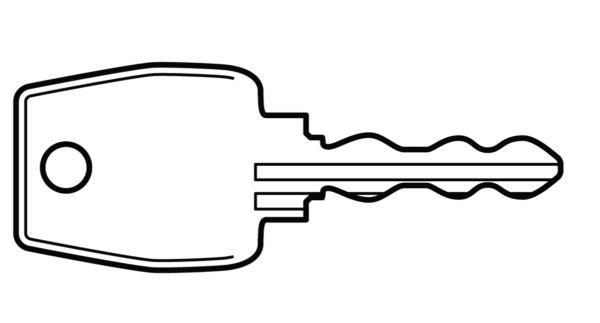

45-47 10 Disc 10 Double 2000 45001 – 47000

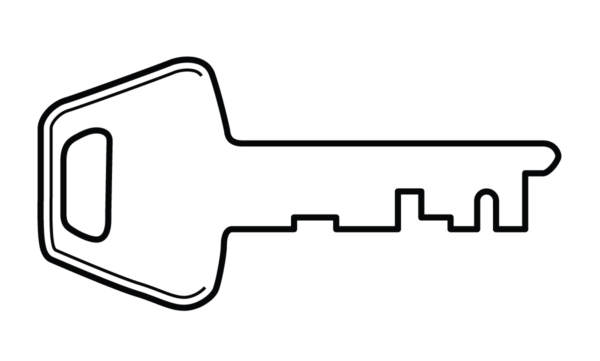

ZA, ZC, ZE, ZF, ZG, ZL Lever Lock 7 Single 1800/2000 Various

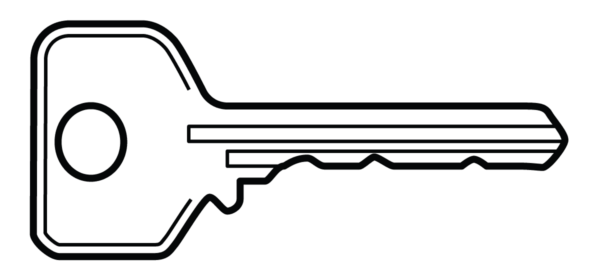

7400 In-line pin 4 Single 690 0001 – 0690

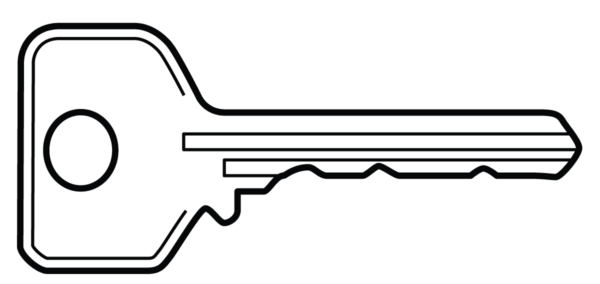

7500 In-line pin 5 Single 3200 1001 – 3200

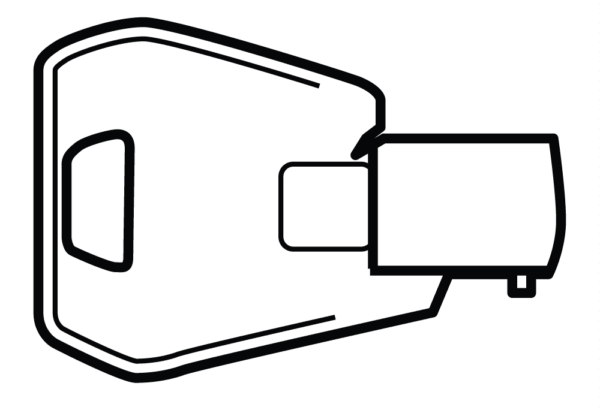

37 Radial pin, non mastered 7 Single 10000 370001 – 379999

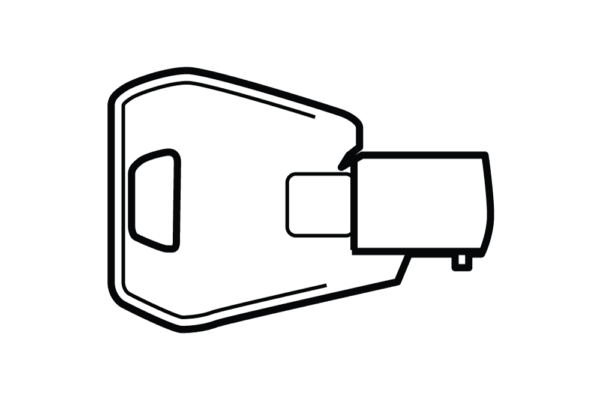

31 Radial pin, mastered 7 Single 10000 310001 – 319999

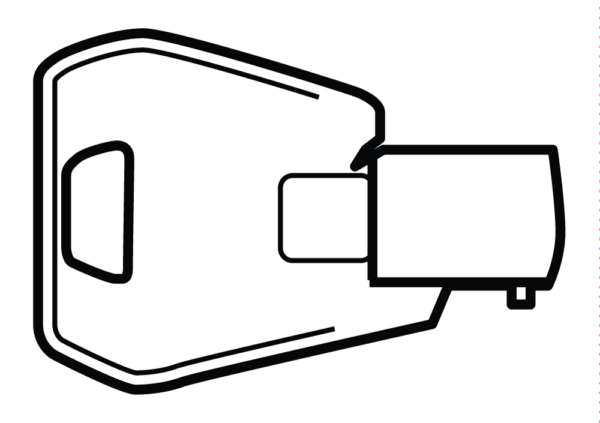

28 Radial pin, non mastered 7 Single 10000 280001 – 28999

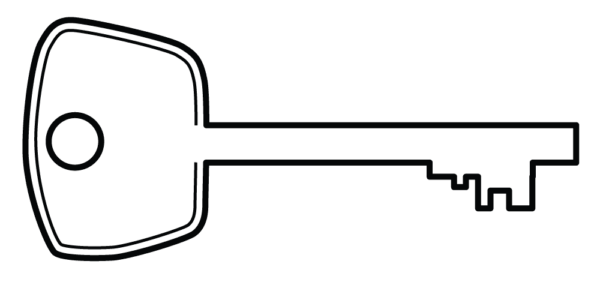

40 Lever Lock 7 Single 6000 400001 – 406000

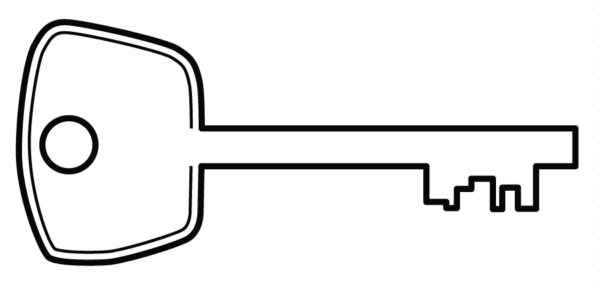

41 Lever Lock 7 Single 1000 410001 – 411000

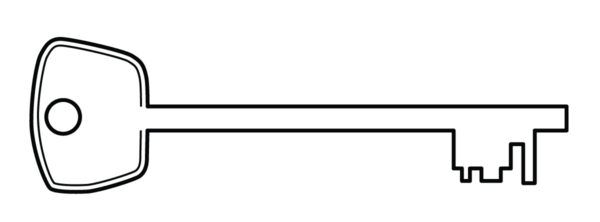

42 Lever Lock 7 Single 4050 420201 – 428400
43 Lever Lock 7 Single 1600 430001 – 431600

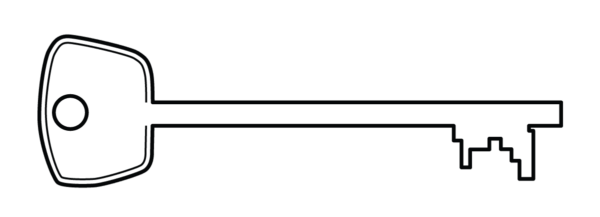

49 Lever Lock 7 Single 2000 491000 – 493000

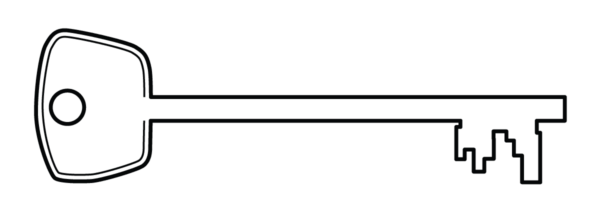

55 Lever Lock 7 Single 10000 491000 – 492000

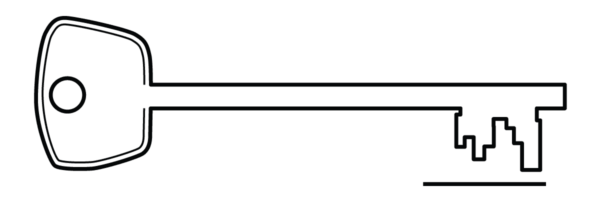

57 Lever Lock 7 Single 1600 570001 – 571600
SR1 Lever lock, double bitted 8 Single 80000 S00001 – S80000
