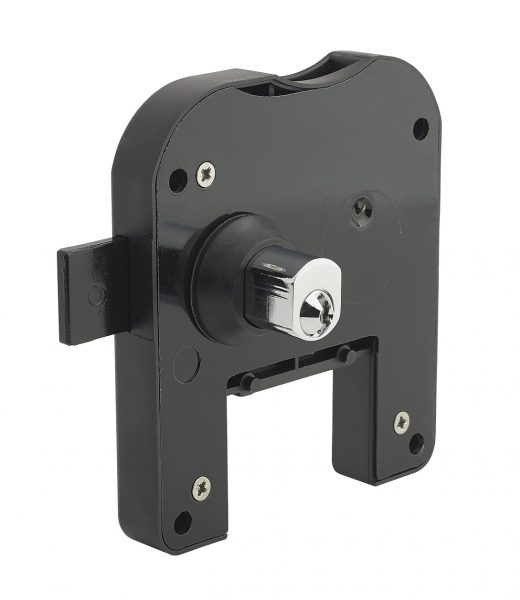

Wet Area Coin Lock 2788
A coin operated lock 2788 with a sliding bolt. The 2788 lock is fully wet area tested and suitable for wet and chlorinated atmospheres such as swimming pools, gyms, leisure centres and spas.
Lock Description
These self-service locks are simple and easy to use and have been designed to secure personal belongings and valuables. The lock is available in 2 modes – coin return and coin retain. In both modes the lock is controlled using a master key, making the lock safe and convenient for users and operators. Perfect for maximising security in wet areas.
For further information contact us on +44 (0) 121 505 0400.
Have a question?
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Cylinder | Finish | Handed | Head Shape | Housing Fixing | Max Panel Thickness | Wet Area | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2788518J | 1050 | 6.9 | 22 | 29.9 | Removable Cylinder | Electrophoretic | Right | Cylindrical | Nut Fixing | 12.5 | Yes | ||
| 2788528J | 1050 | 6.9 | 22 | 29.9 | Removable Cylinder | Electrophoretic | Left | Cylindrical | Nut Fixing | 12.5 | Yes |
Standard Features
- Standard finish: Electrophoretic
- Coin size: Customer selectable – Ø20mm to Ø30mm max, 3.2mm max thickness
- Accessories: Coin tray as standard, lockable coin retain box on request
- Removable cylinder and mastered as standard
- High strength brass key
Additional information
Wet Area Coin Lock 2788 technical drawing
