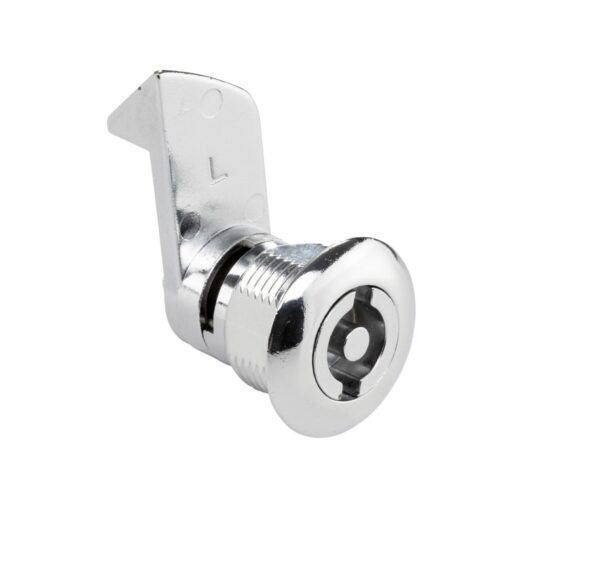

Spring Return Quarter Turn Lock F594
This spring-return lock delivers smooth, reliable locking with no misalignment. The push-to-close, snap-fit action and left or right-hand options make it a versatile choice for enclosures and a wide range of applications. Its smooth operation, automatic reset, and self-repositioning design ensure it’s always ready to use.
Lock Description
Typical applications:
Built for speed, precision, and secure closure, this spring-return lock suits:
- Tool drawers
- Access doors
- Access panels
- Industrial furniture
Have a question?
Lock Options
| Product Code | Body Length | Head Shape | Housing Fixing | Max Panel Thickness | Enquire |
|---|---|---|---|---|---|
| F594 | 18 | Round | Nut Fixing | 8 |
Standard Features
- Spring return mechanism: Lock automatically resets after use
- Fast action: Ideal for slam-to-lock or quick-release applications
- Fixing options: Left or right-hand versions (select rotation direction based on door or panel configuration)
- Keys available: TM8 / DB5
- Housing head dimension: Ø 28mm
- Maximum panel thickness: 8Â mm
- Fixing hole shape: 20 mm square fixing hole
Additional information
Spring Return Quarter Turn Lock F594 technical drawing
