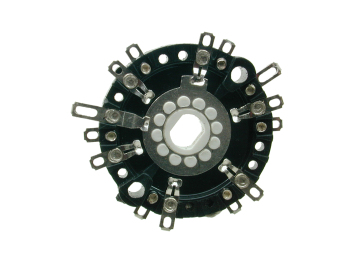

Rotary Action Wafer Switch
A wafer is a switch where the contacts are arranged on both sides. Our range of wafer switches have been designed for use with our 5 disc and 8 disc rotary action key switches. Once connected a wafer switch is used as part of a circuit and are mainly found on Enclosure applications.
Lock Options
| Product Code | Circuit | Indexing | Terminal Type | Enquire |
|---|---|---|---|---|
| 9550002 | 1 Pole 6 Way | 60° | S1 | |
| 9550004 | 1 Pole 6 Way | 60° | S2 | |
| 9550005 | 2 Pole 6 Way | 60° | S2 | |
| 9550011 | 2 Pole 4 Way | 90° | S2 | |
| 9550013 | 3 Pole 3 Way | 60° | S2 | |
| 9550014 | 2 Pole 4 Way | 90° | S1 | |
| 9550017 | 1 Pole 4 Way | 90° | S2 | |
| 9550022 | 1 Pole 6 Way | 60° | P2 | |
| 9550023 | 2 Pole 5 Way | 30° | S1 | |
| 9550025 | 2 Pole 6 Way | 60° | P1 | |
| 9550026 | 4 Pole 3 Way | 45° | S1 | |
| 9550030 | 1 Pole 4 Way | 90° | P1 | |
| 9550031 | 2 Pole 4 Way | 90° | P2 |
Standard Features
Mechanical Specification
- Mechanical contacts: Silver plated brass or gold plated brass
- Wafer: Moulding D.A.P
- Torque: 700-2500 gm/cm
- Life: 10,000 Cycles
- Additional options: Printed circuit clips, insulated spacers, electrostatic screens, bush seals
Additional information
- Max working voltage (resistive load): 300V
- Proof voltage (non-switching): >1000Vrms
- Current carrying capacity (non-switching): 5A
- Contact rating: 250V at 150mA, 110V at 350mA, 12V at 1A
- Initial contact resistance: <10m Ohms
- Insulation resistance: >50G Ohms
- Operating temp: -30°C to 85° C
| P | Printed Circuit Board |
| S | Solder Tag |
| 1 | Shorting |
| 2 | Non-shorting |
