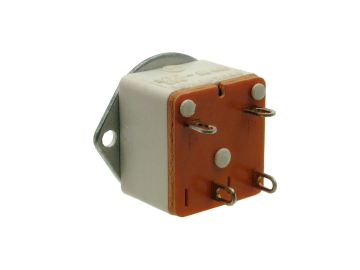

Rotary Action M S Switches 9550006
A 9550006 rotary action M.S. mains voltage switch. When connected to an RPT, 5 disc or 8 disc camlock, this switch forms a keyswitch. Note: this switch has only 1 circuit configuration – see Technical Drawing below.
Lock Options
| Product Code | Circuit | Enquire |
|---|---|---|
| 9550006 | 2 Pole Changeover |
Standard Features
- Soldering Specification: see Technical Resources
Additional information
Rotary Action M S Switches 9550006 technical drawing
- Proof voltage: >3KV
- Contact rating (switch resistive load): 2A 250Vac, 5A 12Vdc
- Insulation resistance: >50G Ohm
- Initial contact resistance: < 20m Ohm
- Minimum operating life: 15,000 cycles
- Contact material: silver cadmium oxide
- Body material: Glass loaded nylon
- Tag panel: S.R.B.P.
- Operating temperature: -25 to 70⁰C
- Flame retardancy: UL94VO
