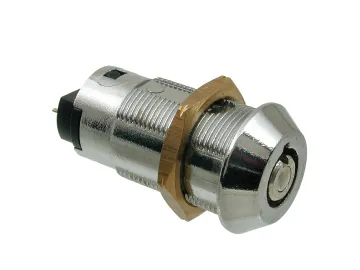

Radial Pin Tumbler Inline Key Switch 4357
A radial pin tumbler (R.P.T) Inline Key Switch 4357 available in Bright Chrome with a Double D fixing hole shape. This switch has been designed for use with an Omron switch D2F only.
Lock Options
| Product Code | Combinations | Body Length | Head Height | Head Width | Head Depth | Head Shape | Housing Fixing | Impulsion Movement | Key Free | Max Panel Thickness | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4357-01-2A | 10000 | 39 | 22.2 | 22.2 | 5.5 | Conical | Nut Fixing | 90° CW | 1 | 12 |
Standard Features
- Standard movements: key free 1
- Impulsion movement: 90° CW
- Lock combinations: 10,000
- Standard finish: bright chrome
- Fixing hole shape: Double D
- M Keyed system supplied to order only
- Switch Type Available: Omron switch D2F
- Soldering Specification: see Technical Resources
Additional information
Radial Pin Tumbler Inline Key Switch 4357 technical drawing
- Contact rating (switch resistive load): 0.1A 30Vdc
- Insulating resistance: >100mOhm
- Initial contact resistance: <30mOhm
- Minimum operating life: 10,000 cycles
- Rated voltage: 5 – 30Vdc
- Current: 0.16 – 100mA
- Tag type: solder
- Operating temperature: -25 – 65⁰C
