External Hinge Z200

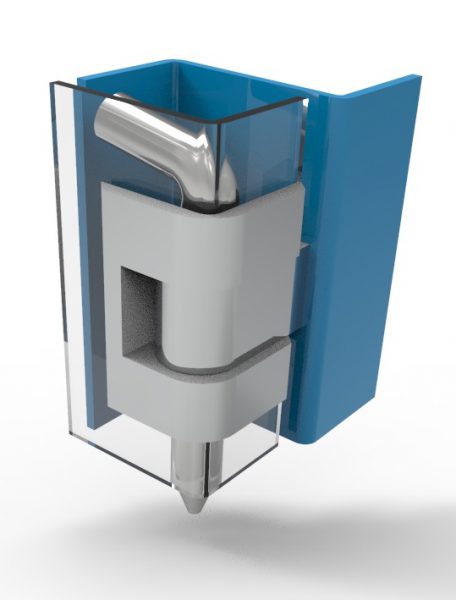

An external corner hinge with a 180° maximum hinge rotation angle. Available in 2 panel thicknesses with 2 different pin sizes, these hinges are commonly used in control cabinets.
Lock Options
| Product Code | Material | Max Hinge Rotation Angle | Enquire |
|---|---|---|---|
| Z200 | Mazak | 180° |
Standard Features
- Panel thickness: 0.8 – 1.2mm; 1.5-2mm
- Standard finish: Pin– Zinc plated
- Material: Zamak
- Hinge material: ZnAl with various finishings available
- Pin manufactured from Steel
- Frame-part fixed with fixing screw included in set
- Door-part fixed with steel, zinc plated bolt
- Removable bolt
Additional information
External Hinge Z200 technical drawing
| Â Product Number | Â Material | Â Optional finish | Â Panel thickness | Â Type of pin | |||
| Z200 | ZB
Zamak |
7
Nickel plated |
1
0,8 – 1,2 mm |
1 – 6,8 mm | |||
| 2
Chrome plated |
2
1,5 – 2,0 mm |
2 – 7,4 mm | |||||
| 8 H
Cataphoresis |
|||||||
| xxxx*
Powder coating |
|||||||
| 6
Zinc plated |
|||||||
| Â Example | |||||||
| Z200 | ZB | 7 | 1 | 1 | |||
*For xxxx please specify RAL number
