These espagnolet locks can all be switched between left or right hand operating modes, reducing stock holding and providing greater production flexibility for office furniture manufacturers.
For more information please email or contact us on +44 121 505 0400.
Note: All espagnolets are supplied in the right hand operating mode and in the unlocked position.
Product Code | Key Series | Combinations | Bolt | Finish | Max Panel Thickness | Movement | Backset | Enquire |
---|---|---|---|---|---|---|---|---|

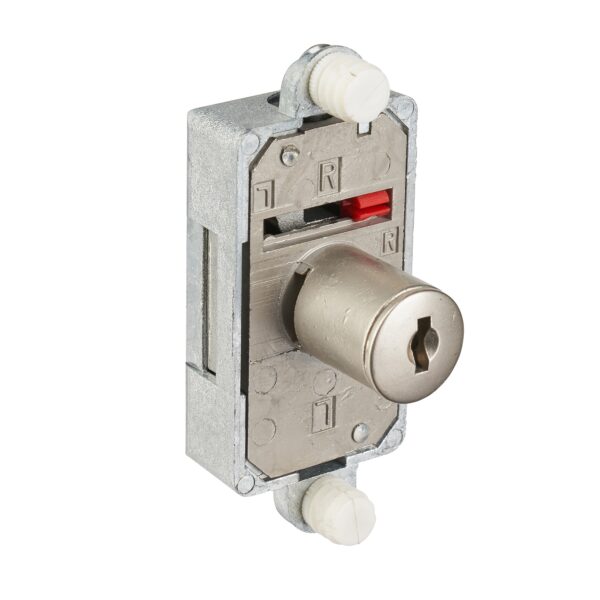

4102 | 200 | No | Satin Nickel | 19 | 90° clockwise for right hand; 90° anti-clockwise for left hand | 15 | ||

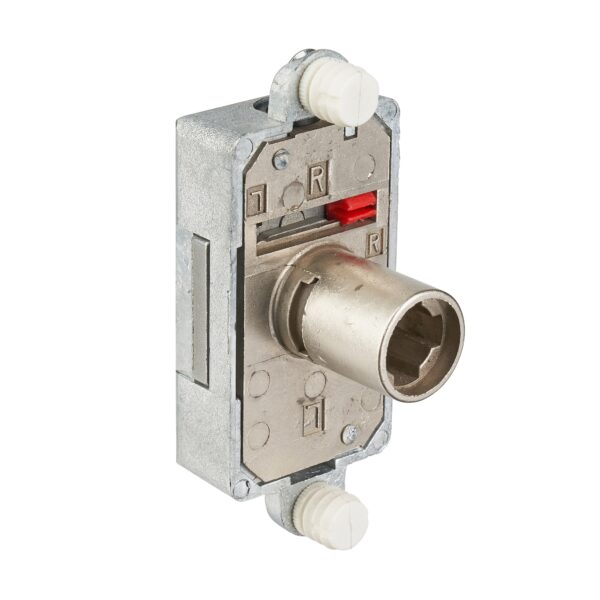

4103 | 200 | No | Satin Nickel | 22 | 90° clockwise for right hand; 90° anti-clockwise for left hand | 15 | ||
4106 | 200 | Yes | Satin Nickel | 19 | 90° clockwise for right hand; 90° anti-clockwise for left hand | 15 | ||
4107 | 200 | Yes | Satin Nickel | 22 | 90° clockwise for right hand; 90° anti-clockwise for left hand | 15 | ||
4108 | 200 | Yes | Satin Nickel | 19 | 90° clockwise for right hand; 90° anti-clockwise for left hand | 25 | ||
4109 | 200 | Yes | Satin Nickel | 22 | 90° clockwise for right hand; 90° anti-clockwise for left hand | 25 |
