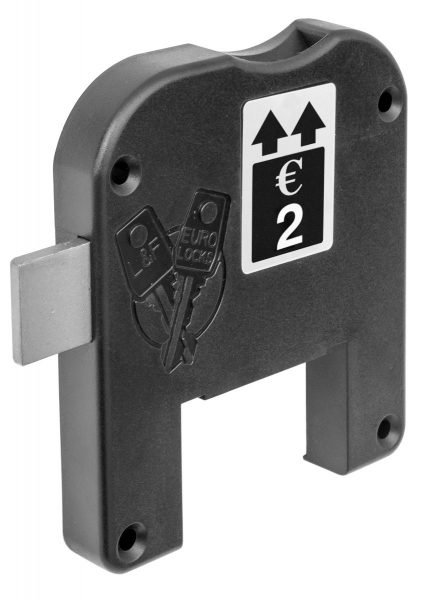

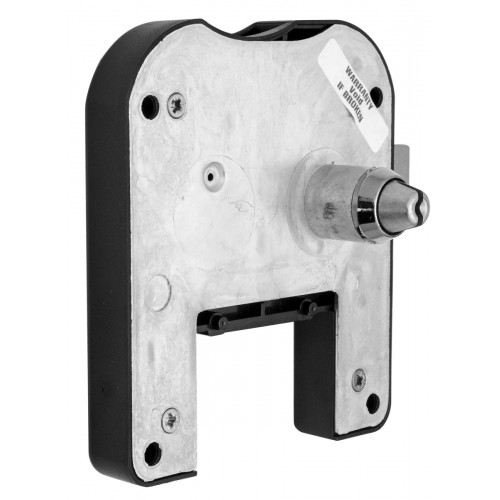

Dry Area Coin Lock 2786
A coin operated lock 2786 with a sliding bolt. The lock is available in 2 modes – coin return and coin retain. In both modes the lock is controlled using a master key, making the lock safe and convenient for users and operators.
Lock Description
These self-service locks are simple and easy to use and have been designed to secure personal belongings and valuables. The 2786 lock can only be used in dry environments such as lockers or storage units in public buildings, shopping centres or educational facilities.
For further information contact us on +44 (0) 121 505 0400.
Have a question?
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Barrel | Finish | Handed | Head Shape | Wet Area | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2786510A | 2000 | 6.9 | 22 | 19 | Removable Barrel | Self Colour | Right | Cylindrical | No | ||
| 2786520A | 2000 | 6.9 | 22 | 19 | Removable Barrel | Self Colour | Left | Cylindrical | No | ||
| 2787510A | 2000 | 6.9 | 22 | 19 | Non Removable Barrel | Self Colour | Right | Cylindrical | No |
Standard Features
- Standard finish: Self-colour
- M Keyed system supplied to order only
- Coin size: Customer selectable – Ø20mm to Ø30mm max, 3.2mm max thickness
- Accessories: Coin tray as standard, lockable coin retain box on request
- Removable barrel
Additional information
Dry Area Coin Lock 2786 technical drawing
