C K Switch Clip-on 9550507

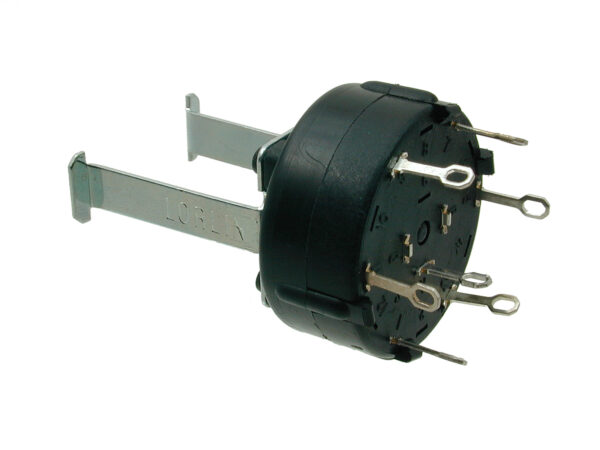

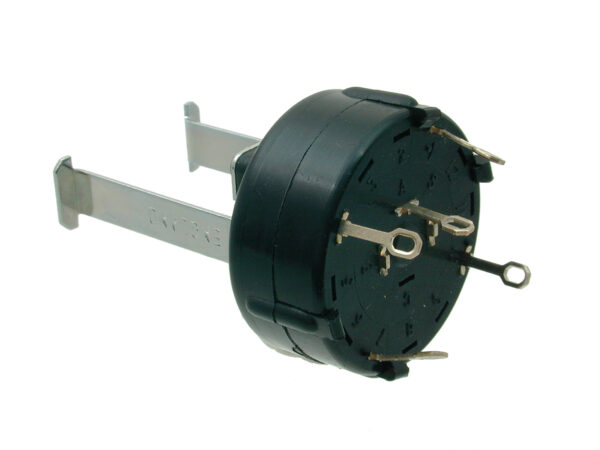

A clip-on C.K. switch available with various circuit configurations. This switch can be connected to an RPT, 5 disc or 8 disc camlock to form a keyswitch which can be commonly found on Enclosure applications such as fire alarm systems. Note: the circuit formed by this switch is non shorting (see lock options below). Shorting versions and other switch variants are available on request.
Lock Options
| Product Code | Circuit | Indexing | Switch Type | Enquire |
|---|---|---|---|---|
| 9550507 | 1 Pole 12 Way | 30° | Solder Tag | |
| 9550517 | 1 Pole 4 Way | 90° | Solder Tag | |
| 9550525 | 2 Pole 2 Way | 90° | Solder Tag |
Standard Features
- Soldering Specification: see Technical Resources
Additional information
C K Switch Clip-on 9550507 technical drawing
- Proof voltage: 1000V RMS
- Current carrying capacity (non-switching): 5 A
- Contact rating (switch resistive load): 150mA 250V – 350mA 110V – 1A 25V
- Insulation resistance: >25G Ohm
- Initial contact resistance: < 50m Ohm
- Minimum operating life: 10,000 cycles
- Contact material: silver plated brass
- Body material: Glass loaded nylon/polycarbonate
- Operating temperature: -20 to 65⁰C
| Switch Type | Circuit (non-shorting) | Indexing | |
| Solder Tag | P.C.B Mount | ||
| 9550507 | – | 1 Pole 12 Way | 30° |
| 9550517 | – | 1 Pole 4 Way | 90° |
| 9550525 | – | 2 Pole 2 Way | 90° |
