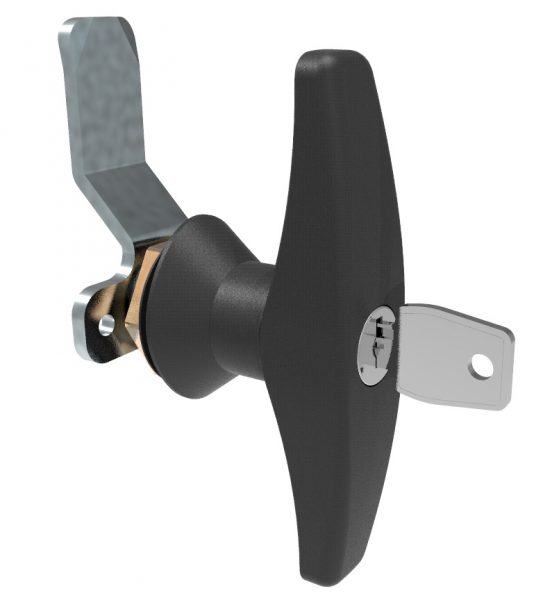

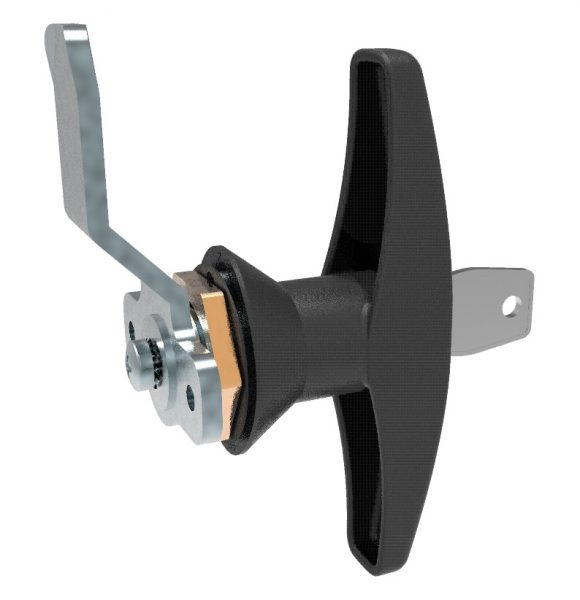

9mm T Handle F490

A range of 9mm T Handles in Black Plastic RAL 9011 (other colours available on request).

View Lock Details
Featured Technicals
Lock Description

With a screw cam fixing, plastic handle and plastic rosette with Mazak insert, this handle can also be supplied IP65 rated on request. This makes it ideal for applications such as Enclosures and Lockers.

These handles are available with the S-Line antibacterial over moulded keys. The unique over moulding process helps fight bacteria and avoids cross contamination between multiple users of the same key. Download the brochure or contact us for more information.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Handle Depth Finish Handle Height Lock Type Max Panel Thickness Enquire
F489 9 32 Black Plastic 11 Non-Locking 3
F490 500 9 32 Black Plastic 11 Locking 3
F491 500 9 32 Black Plastic 11 Locking 3
Standard Features
  • Standard movements: 1, 2
  • Lock Combinations: 500
  • Standard finish: Black plastic RAL 9011
  • Panel thickness: 3mm
  • Fixing hole shape: Special round (see technical drawing)
  • M Keyed system supplied to order only
  • IP65 rated on request
  • Dimension ‘B’ & ‘X’ Specification: See Cams for handles

Additional information

9mm T Handle F490 technical drawing
