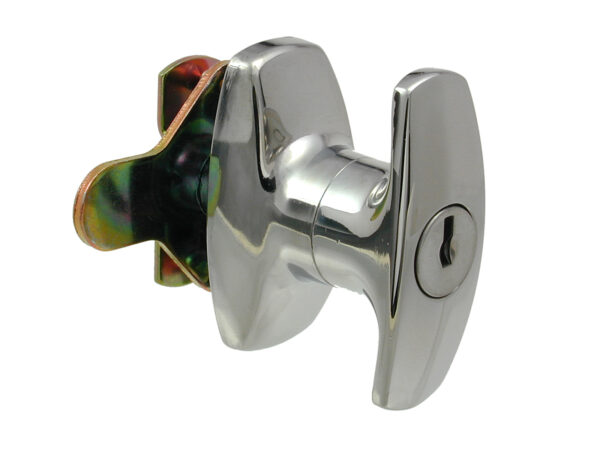

9mm T Handle 1601
A range of 9mm T Handles available in Epoxy, Bright Chrome or Electrophoretic.
Lock Description
Handles 1618, 1619, 1818 and 1873 have the option of a caulking cam and is ideal for garage doors, shutters and Metal Office Furniture.
Have a question?
Lock Options
| Product Code | Key Series | Combinations | Handle Depth | Cam Type | Fixing | Handle Height | Housing Fixing | Lock Type | Version | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 1601 | 200 | 43 | Concealed | 60 | Nut Fixing | Locking | Standard | |||
| 1609 | 43 | Concealed | 60 | Nut Fixing | Non-Locking | Standard | ||||
| 1611 | 43 | Concealed | 60 | Nut Fixing | Fixed | Standard | ||||
| 1618 | 200 | 43 | Caulking | Concealed | 60 | Nut Fixing | Locking | Standard | ||
| 1619 | 43 | Caulking | Concealed | 60 | Nut Fixing | Non-Locking | Standard | |||
| 1629 | 200 | 43 | Visible | 60 | Nut Fixing | Locking | Standard | |||
| 1630 | 43 | Visible | 60 | Nut Fixing | Non-Locking | Standard | ||||
| 1631 | 43 | Visible | 60 | Nut Fixing | Fixed | Standard | ||||
| 1701 | 2000 | 43 | Concealed | 60 | Nut Fixing | Locking | Standard | |||
| 1729 | 2000 | 43 | Visible | 60 | Nut Fixing | Locking | Standard | |||
| 1801 | 1000 | 43 | Concealed | 60 | Nut Fixing | Locking | Standard | |||
| 1818 | 1000 | 43 | Caulking | Concealed | 60 | Nut Fixing | Locking | Standard | ||
| 1829 | 1000 | 43 | Visible | 60 | Nut Fixing | Locking | Standard | |||
| 1871 | 1000 | 43 | Concealed | 60 | Nut Fixing | Locking | Shuttered | |||
| 1872 | 1000 | 43 | Visible | 60 | Nut Fixing | Locking | Shuttered | |||
| 1873 | 1000 | 43 | Caulking | Concealed | 60 | Nut Fixing | Locking | Shuttered |
Standard Features
- Lock Combinations: 200-2,000
- Standard finish: Epoxy, bright chrome, electrophoretic
- Fixing hole shape: Round with screw fixing (see technical drawing)
- M Keyed system supplied to order only
- Click the links for details on accessories, standard movements and spindles
Additional information
9mm T Handle 1601 technical drawing
