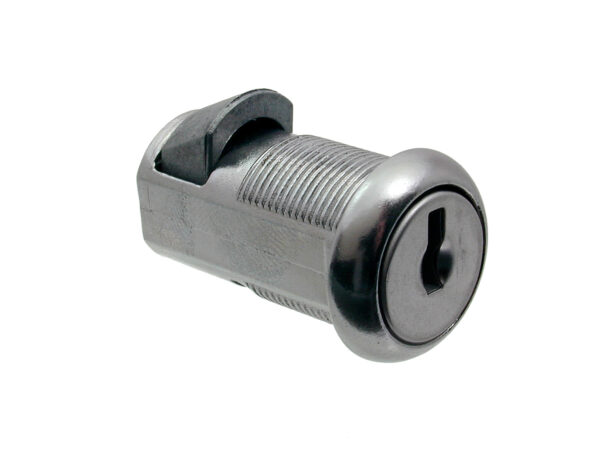

20mm-21mm Slamlock 0305
A series of 20mm, 20.8mm and 21mm Slamlocks available in a variety of finishes. These locks are ideal for numerous applications including Enclosures.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | A Dimension | B Dimension | Head Shape | Housing Fixing | Movement | Version | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5836 | 200 | 20 | 22 | 5 | 20 | 12 | Conical | Nut Fixing | Standard | |||
| 0305 | 200 | 20 | 22 | 4.3 | 20 | 14.7 | Round | Nut Fixing | 1 | Standard | ||
| 0336 | 200 | 20.8 | 22 | 4.3 | 20 | 14.7 | Conical | Clip Fix | 1 | Standard | ||

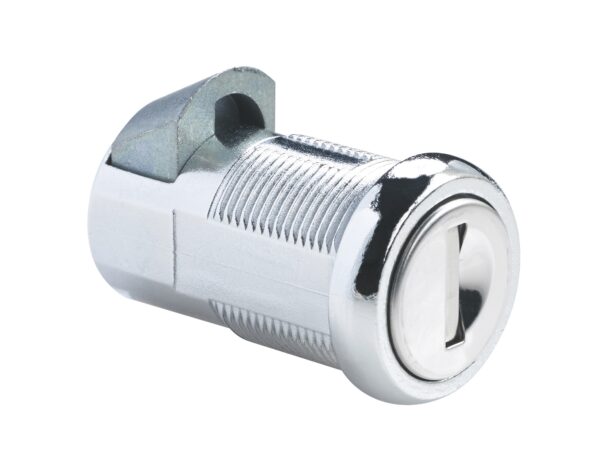

| B586 | 200 | 21 | 22 | 4.3 | 21 | 14 | Round | Nut Fixing | 2 | Shuttered | ||
| B861 | 500 | 21 | 22 | 4.3 | 21 | 13 | Conical | Nut Fixing | 8 | Standard | ||
| C432 | 500 | 21 | 22 | 4.3 | 21 | 14.7 | Conical | Nut Fixing | 8 | Standard |
Standard Features
- Standard finish: Bright chrome, black chrome, satin chrome
- M Keyed system supplied to order only
- Shuttered version: B586
- Accessories: Supplied with diecast strike plate, recommended fixing screws M3x8 (not supplied)
- Slam action available with and without key
Additional information
20mm-21mm Slamlock 0305 technical drawing
