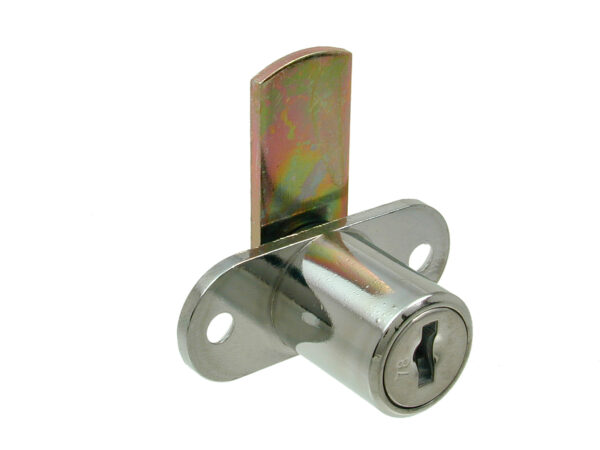

19mm Tambour Lock 5811
A series of 19mm Tambour Locks available in Nickel or Black.
Lock Description
This lock is ideal for use on Tambour Door Cupboards and Cabinets.
Have a question?
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Flange | Head Shape | Housing Fixing | Lock Fixing | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 5811 | 200 | 19 | 16.3 | 19 | Double | Cylindrical | Screw Fixing | Horizontal | ||
| 5812 | 200 | 19 | 16.3 | 19 | Double | Cylindrical | Screw Fixing | Vertical | ||
| 5813 | 200 | 19 | 16.3 | 19 | Single Top | Cylindrical | Screw Fixing | Vertical | ||
| 5814 | 200 | 19 | 16.3 | 19 | Single Top | Cylindrical | Screw Fixing | Horizontal | ||
| 5815 | 200 | 19 | 16.3 | 19 | Single Bottom | Cylindrical | Screw Fixing | Vertical | ||
| 5816 | 200 | 19 | 16.3 | 19 | Single Bottom | Cylindrical | Screw Fixing | Horizontal |
Standard Features
- Standard movements: 8, 9
- Lock Combinations: 200 (1,000 on request)
- Standard finish: Barrel nickel, black
- Fixing hole shape: Round with screw fixing (see technical drawing)
- M Keyed system supplied to order only
- Rosette 7008003: Available on request
- Use ‘T’ cams as specified: See Cams page
Additional information
19mm Tambour Lock 5811 technical drawing
