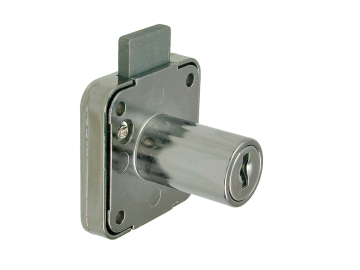

19mm-25mm Rim Lock 5864
A range of 19mm or 25mm Rim Locks available in a number of finishes.
Lock Description
This lock has a fixed barrel and is ideal for use on items such as cupboards and cabinets.
Have a question?
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Head Shape | Housing Fixing | Lock Fixing | Movement | X Dimension | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5864 | 200 | 25 | 16.3 | 25 | Cylindrical | Screw Fixing | Vertical | 3 | 25 | ||
| 5865 | 200 | 19 | 16.3 | 19 | Cylindrical | Screw Fixing | Vertical | 3 | 19 | ||
| 5866 | 200 | 25 | 16.3 | 25 | Cylindrical | Screw Fixing | Right Hand | 3 | 25 | ||
| 5867 | 200 | 19 | 16.3 | 19 | Cylindrical | Screw Fixing | Right Hand | 3 | 19 | ||
| 5868 | 200 | 25 | 16.3 | 25 | Cylindrical | Screw Fixing | Left Hand | 4 | 25 | ||
| 5869 | 200 | 19 | 16.3 | 19 | Cylindrical | Screw Fixing | Left Hand | 4 | 19 |
Standard Features
- Standard movements: 3, 4
- Lock Combinations: 200 (1,000 on request)
- Standard finish: Bright chrome, bright nickel, black chrome
- Fixing hole shape: Round
- M Keyed system supplied to order only
- Rosette 7008003: Available on request
Additional information
19mm-25mm Rim Lock 5864 technical drawing
